Condition:
New Stock: An item in excellent, new condition with no functional defects. The item includes accessories found with the original product and a 6 Month Warranty.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: MP10
MPN: A-2033-1116
Item Description:

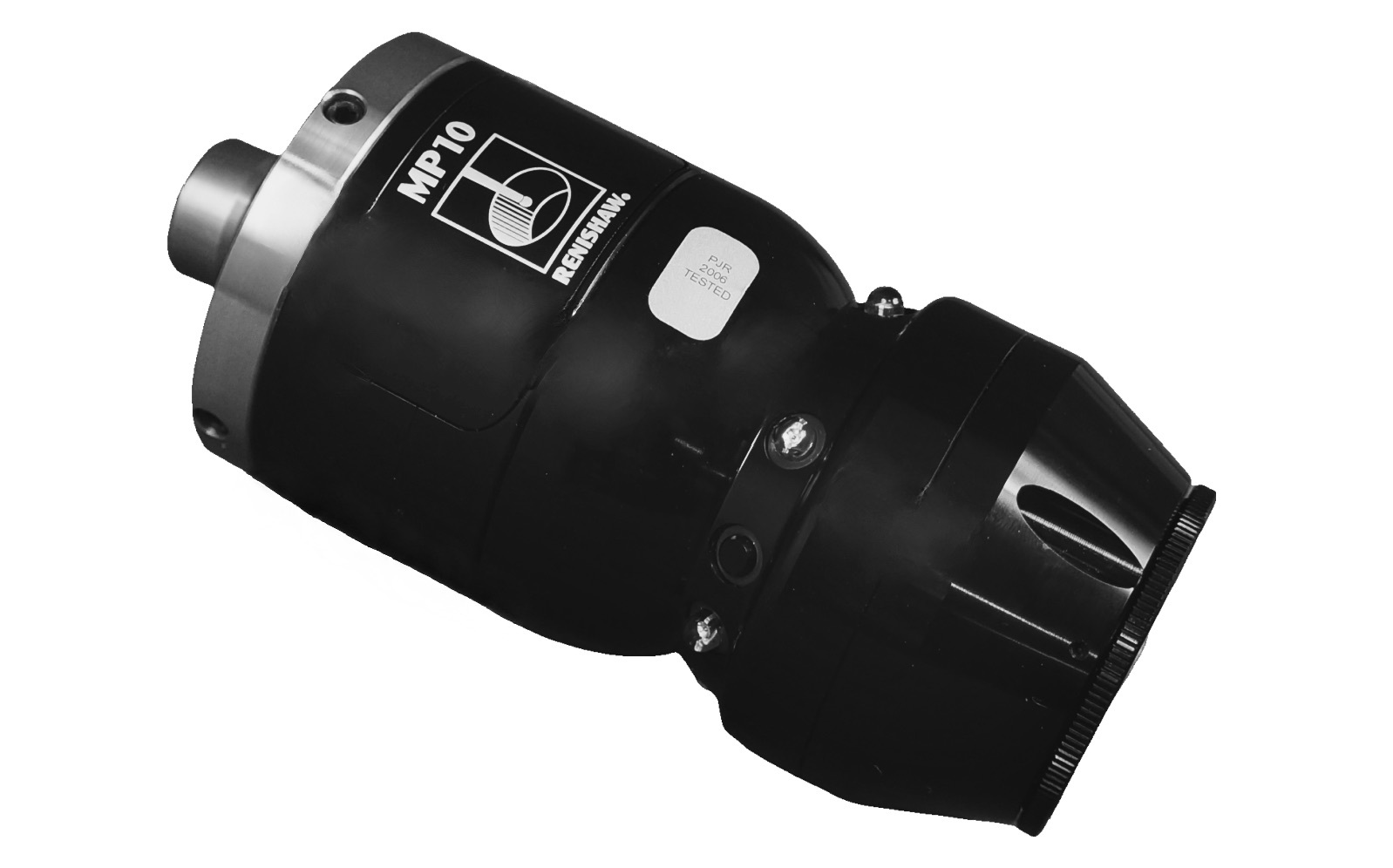

Renishaw MP10 Probe Head New Stock with 6 Month Warranty.

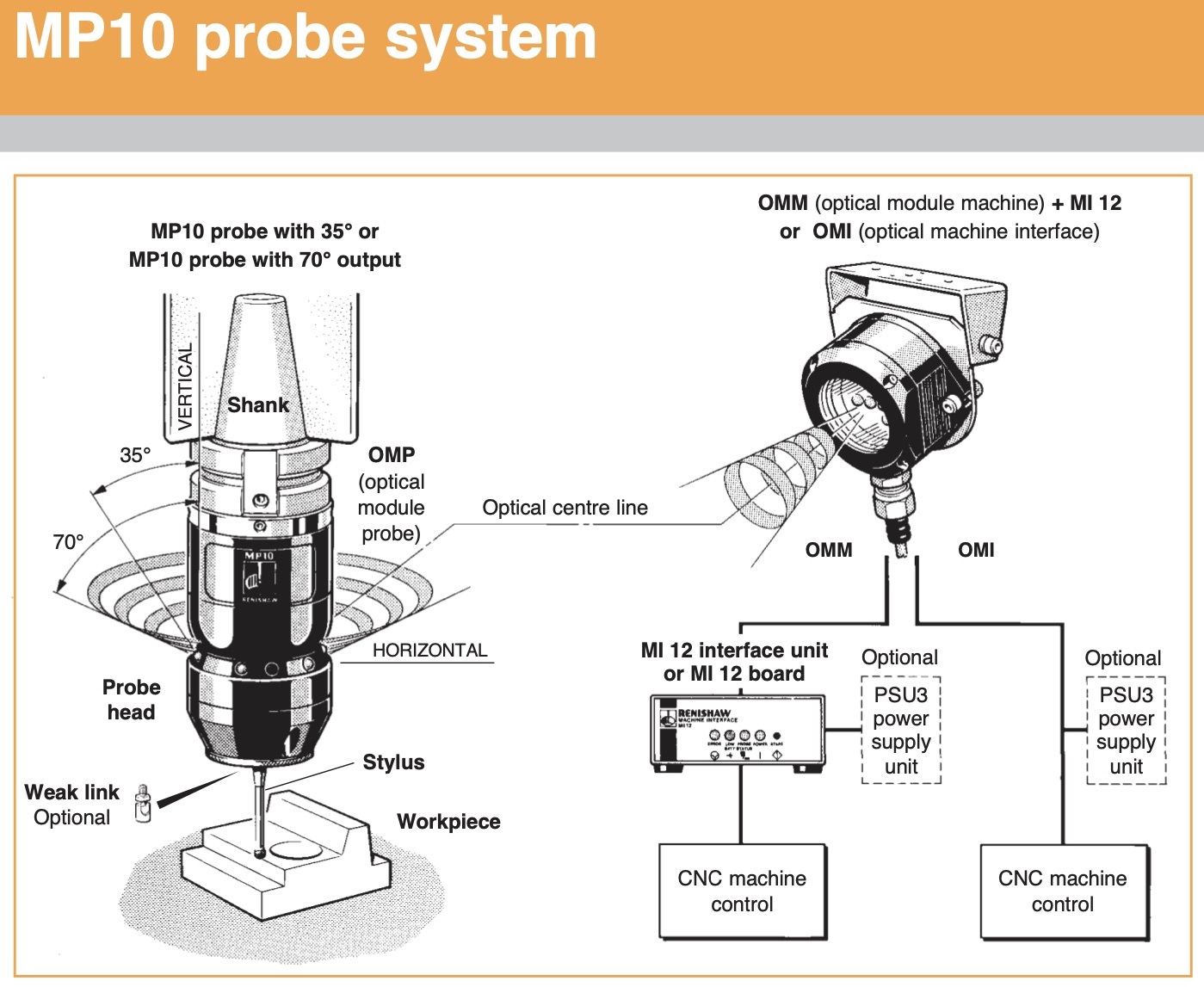

* System Components *
MP10 Probe
The MP10 probe is used for workpiece set-up and inspection on CNC machining centres.
OMM (optical module machine)
Transmits CNC messages to the probe and receives data signals for transmission to the MI 12 interface.
MI 12 interface unit
Processes signals between the OMM and the CNC machine control.
OMI (optical machine interface)
An alternative to the OMM + MI 12 interface, combining the functions of both OMM and MI 12 in one unit.
PSU3 power supply unit for MI 12 or OMI
Used when 24 V supply is not available from the machine. Software for probe routines
The MP10 is suitable for use with Renishaw single and double touch probing cycles.

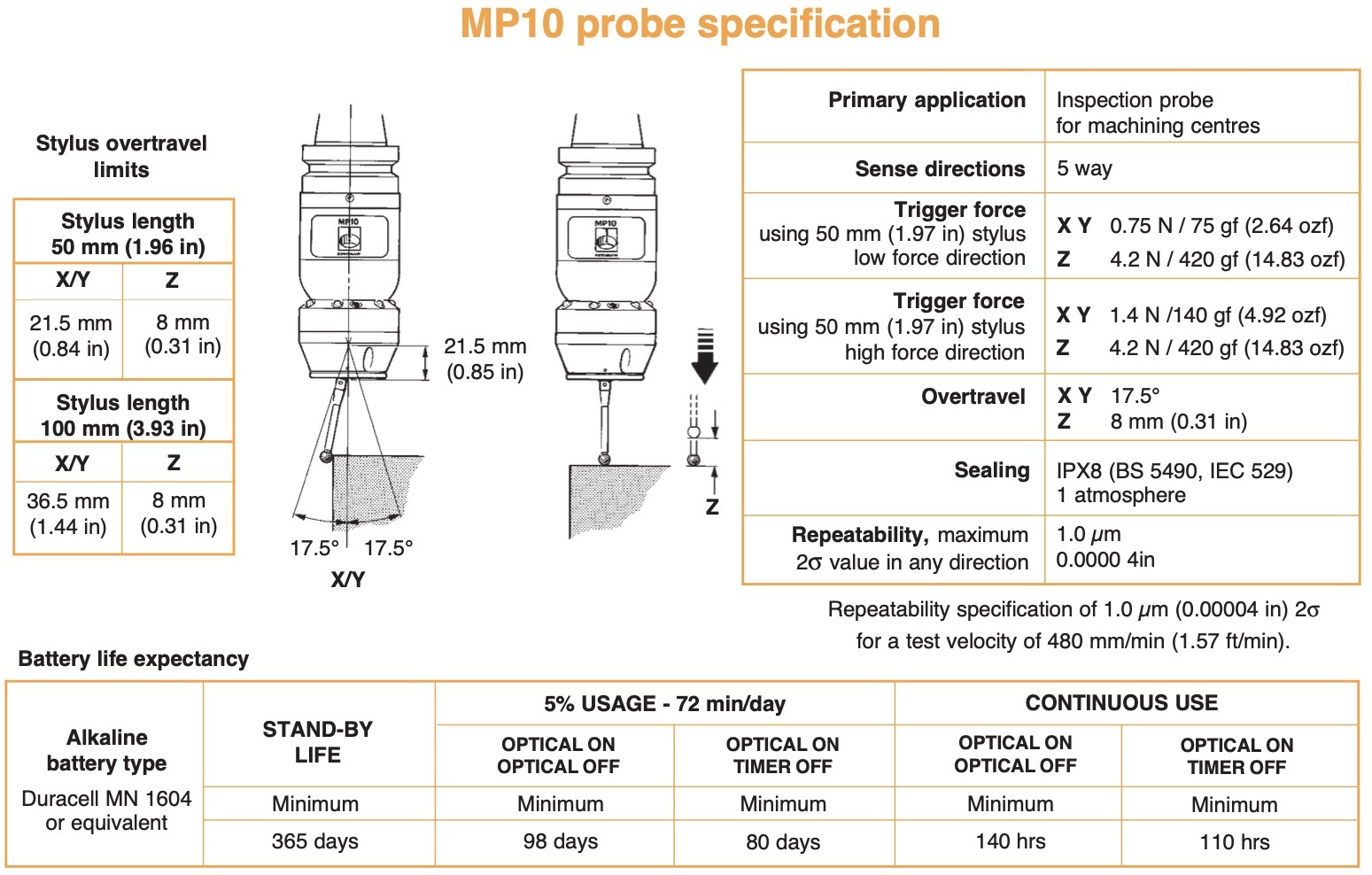

MP10 Specification
* System Features *
Signal Transmission
The MP10 is available with either 35° or 70° output and features wide beam transmission - up to 130°.
Full 360° signal transmission and up to 6 m (19.6 ft) range. Infrared optical filters reduce interference to data transmission.
Probe Repeatability
Repeatability, 1.0 μm (40 μin) is certified at
480 mm/min (1.57 ft/min).
Probe Switch-on
Probe switch-on is selectable between M code and auto start.
Probe, OMM and OMI Sealing
Sealed to IP68 and designed for the machine tool environment.
Break Protection
A stylus weak link is included in each kit, to protect the probe in the event of excessive stylus overtravel.
