Renishaw MIH Manual Indexible CMM Touch Probe Head DEA Shank with 90 Day Warranty A-1070-0003 A-1051-0417 M-1041-5348

MSRP: $7,788.00
(You save $6,438.00)
(No reviews yet) Write a Review
2.00 LBS
Calculated at Checkout

Product Description


Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.




Country of Manufacture:   UNITED KINGDOM


Model:   MIH PAA1 MS13 SHANK

MPN:   A-1070-0003 A-1051-0417 M-1041-5348



Item Description

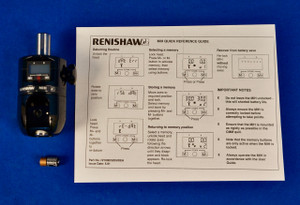

Renishaw MIH Manual Indexable CMM Touch Probe Head, MS13 Shank (DEA)  & PAA1 Adapter Fully Tested with 90 Day Warranty.



Renishaw List Price $7468.00

About MIH

The manually indexable head (MIH) is positionally repeatable in 720 positions and features an autojoint probe mount for fast, repeatable probe changing. This ensures compatiblity with most Renishaw probes except multiwire (e.g. TP7M).

An integral LCD enables easy programming with the facility to memorise up to 20 probe positions.

The MIH is designed for use with long probe extensions for larger components.

MIH for increased manual CMM productivity

  • A versatile manual indexing probe head
  • Repeatable indexing: 720 positions in 7.5° increments
  • An integral LCD enables easy programming of probe orientation positions
  • 20 probe positions can be memorised
  • Compatible with most Renishaw probes (excluding all multiwire e.g. TP7M)
  • Capable of carrying up to 300 mm (11.81 in) extension for deep part measurement
  • Autojoint probe mount for fast repeatable probe changing

The MIH is designed for use with long probe extensions for larger components.

PAA1 30 mm Steel Extension Bar

PAA autojoint to M8 extension bars, available in three lengths, allow standard two-wire touch-trigger probes to be fitted to autojointed heads, for example TP20 to PH10M or MIH.


Technical table

Length 30 mm
Material Steel


Compatible heads:

  • PH10M PLUS
  • MIH
  • PH6M
  • PHS1

Compatible probes:

  • TP20
  • TP200
  • TP6
  • TP2


Shanks are used to mount the probe head to the quill of the machine.There are a range of shanks suitable for all Renishaw manual and motorised probe heads (except PH6 and MH20), as well as the TP1 probe. There is also a range which is specific to the PH6 and MH20. The correct shank must be chosen to suit the mounting facility of your CMM.

Standard base diameter for all shanks (except PH6and MH20) is 41.35 mm - 41.45 mm (1.62 in - 1.63 in)

renishaw-ms13-dea-shank-measurement-.jpeg   renishaw-ms13-dea-shank-description-details-.jpeg

Renishaw MIH probe has been fully tested and is guaranteed to meet all original manufacturers specifications.

Renishaw MIH probe comes with a 90 Day Warranty.

The MIH is designed to be used with the TP6A touch probe and long extensions but with the PAA1 Adapter TP2 TP6 and TP20 Touch Probes can be used as well.

You may add any of these probes to your MIH order. This sale includes a PAA1 Autojoint.


This is a great price for a Renishaw MIH, DEA Shank & PAA1 Autojoint Fully Tested with 90 Day Warranty. Why pay retail prices when you can purchase with warranty from Metrology Parts.

Purchase with confidence from a Paypal verified retailer. If what you order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw needs. If you have any questions feel free to contact us.

With 36 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
