We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: MCR20 RACK TP20 SF TP20 LF MODULE
MPN: A-1371-0261 A-1371-0392

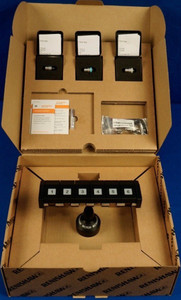

Renishaw MCR20 Module Changing Rack, 2 TP20 Standard Force & 1 TP20 Low Force Modules New in with 1 Year Warranty.
MCR20 Probe Module Change Rack
The MCR20 module changing rack provides rapid automatic changing of probe modules without the
need to requalify. Rack function is completely passive and does not require any electrical connections.
Module change rack enabling automated changing of TP20 stylus modules.
The MCR20 module changing rack is passive and can store up to six TP20 probe modules for automatic
changing under measurement program control
| Specification | |
|---|---|
| Height | 145 mm (5.71 in) |
| Depth | 60 mm (2.36 in) |
| Width | 200 mm (7.87 in) |

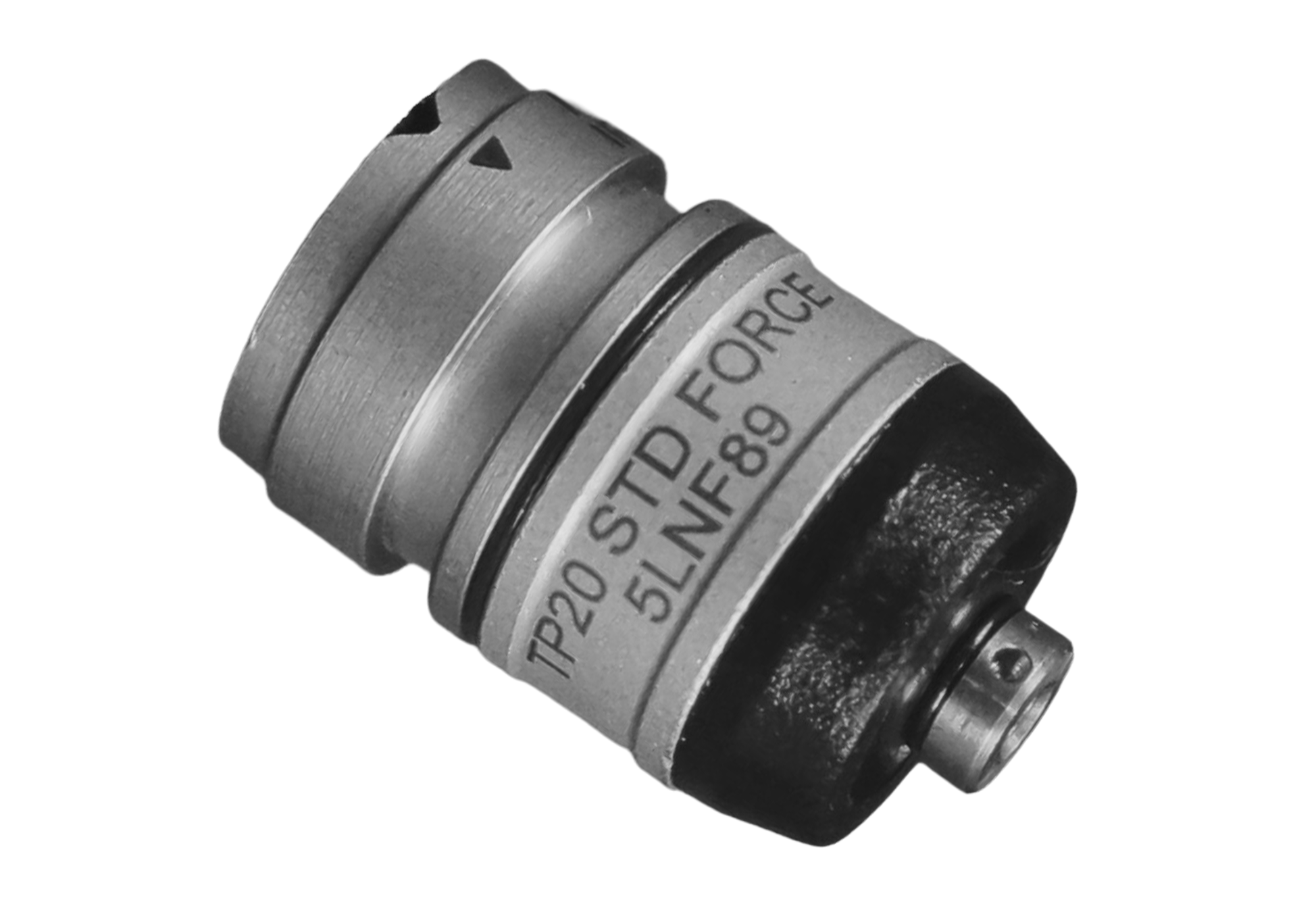

TP20 Standard Force Module
The TP20 is a compact module changing touch-trigger probe. The two-piece design, comprising of a probe body and detachable stylus module(s), allows the use of a range of stylus configurations and extensions to access features on complex parts. Modules can be changed manually or automatically without the need for requalification of the stylus tip.
The standard force probe module is identified by a black cap. This probe module is suited to the majority of applications requiring extensions up to 50 mm long.
The recommended stylus limits for the standard force probe module are:
Straight styli up to 50 mm long * Star and cranked styli up to 20 mm offset

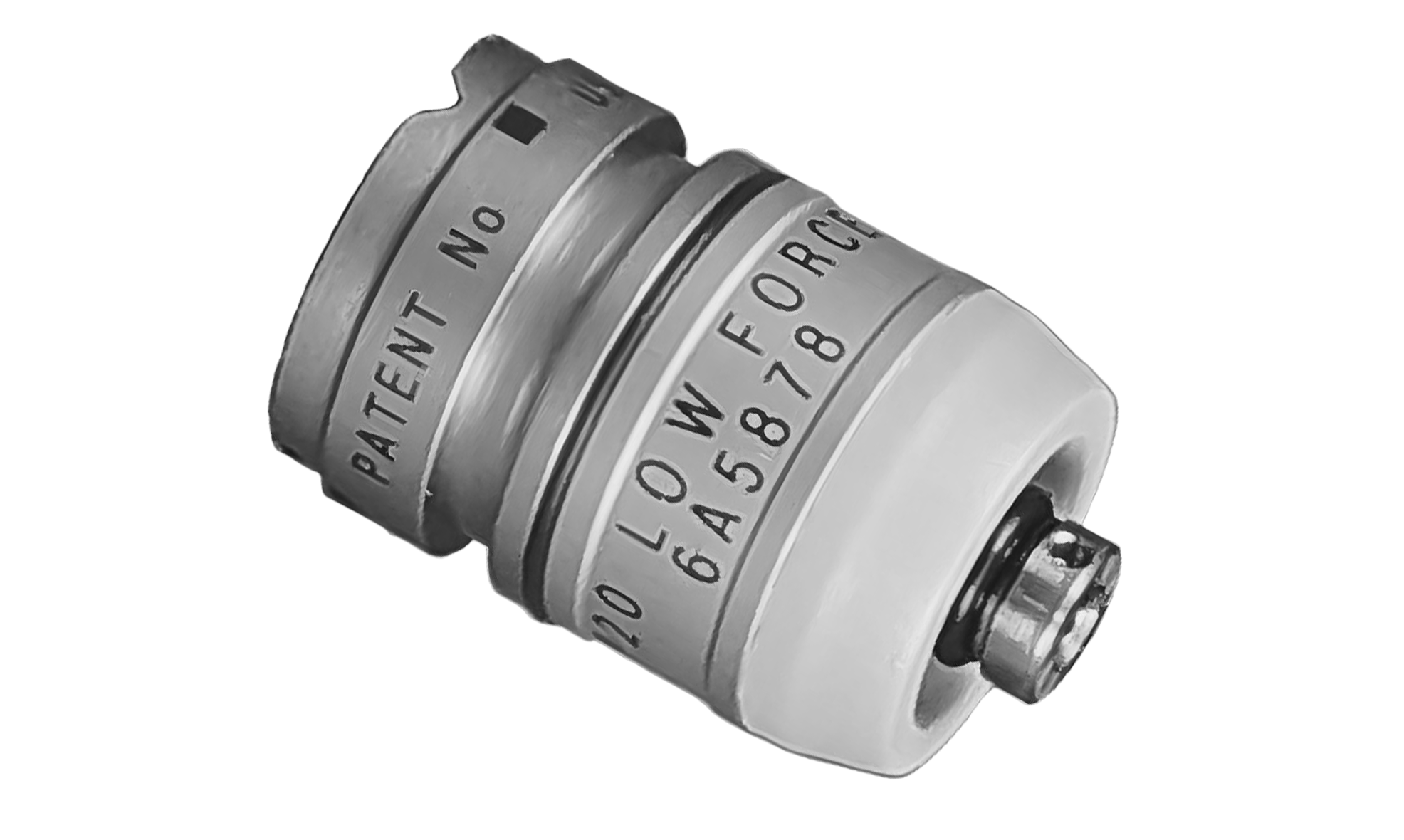

TP20 Low Force Module
The low force probe module is identified by a green cap. This probe module is designed for applications that require a low trigger force to measure workpiece deflection.
The recommended stylus limits for the low force probe module are:
Steel and carbide styli up to 30 mm long * No star or cranked styli
TP20 Touch Probe Module Specification
This is by the far the best price you will find on a Renishaw MCR20 Module Changing Rack with 3
TP20 Modules. Why pay retail prices when you can purchase new with warranty from Metrology Parts.
Purchase with confidence from a Paypal verified retailer. If what you order is not what you receive you
will be refunded the full purchase price for this sale. Metrology Parts would like the opportunity to
earn your business for this sale and all of your future Renishaw needs. If you have any questions feel
free to contact us. With 36 plus years of experience with Renishaw products we can help with all of your
application needs as well as your after sales support.
