Renishaw Machine Checking Gage MCG1 CMM Calibration Standard with 90 Day Warranty A-1007-0006

MSRP: $3,606.00
(You save $2,256.00)
(No reviews yet) Write a Review
10.00 LBS
Calculated at Checkout

Product Description



Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used.




Country of Manufacture:    UNITED KINGDOM


Model:   MCG1

MPN:   A-1007-0006



Item Description

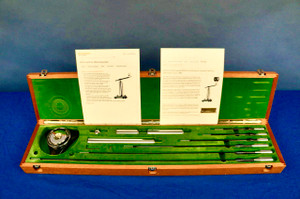

Fully Tested Renishaw MCG1 Machine Checking Gage CMM Calibration Standard in original foam lined mahogany box.




Renishaw Machine Checking Gage is fully functional and in excellent condition.

This kit has some components still wrapped in their original packaging since new and also includes a new certified pivot assembly.

Renishaws current retail price for this kit is $3606.00


Machine Checking Gauge (MCG) for CMM performance monitoring

MCGMost CMM's are typically subjected to an annual service and re-calibration by the original equipment manufacturer (OEM) or independent calibration service. Testing is often carried out to a defined procedure laid down in a recognised standard such as ISO, ASME, or  VDI/VDE. These tests require the use of fixed length ball-ended bars or step gauges and laser measurement systems (e.g Renishaw XL-80 laser). The measurement data can then be used to modify the CMM controller's electronic error map to restore it to within accuracy specifications. This well recognised procedure is essential but can be time consuming and costly.

Many end users want a simpler method of monitoring accuracy at regular intervals between these checks, or after a collision. Using the Renishaw MCG,they are able to carry out a (typically) 10-20 minute interim verification of volumetric accuracy to ISO 10360-2. The results give assurance that measurements taken on the CMM are accurate, or give conclusive proof that servicing or re-calibration work is needed. The process is quick and cost effective and a range of pillar heights and arm lengths mean that volumetric accuracy can be checked on both large and small CMMs.


Machine Checking Gauge

  • Checking time for CNC (DCC) Machine: typically 15 minutes
  • Checking time for joy-stick and manual machines: typically 45 minutes
  • Measuring range: vertical, ± 45°; horizontally, 360°
  • Total Gauge error: ±0.5µm
  • MCG 1 for Small Kit Machines up to 1m³
  • MCG 2 for Comprehensive Kit Machines greater than 1m³

The probe stylus slots into the end of what is in effect a reference "ball" bar. The probe carries the bar with it over a spherical path, and radial readings are taken at different positions. The range of these radial readings indicates the Volumetric Measuring Performance of the machine. Repetition of a sequence of readings checks the system repeatability.

Volumetric Measuring Performance is the maximum error between any two points in any plane, over any distance within the full measuring volume.

Calibration traceable to USA National Institute of Standards and Technology (Ref # 731/23897-87). The Machine Checking Gauge also complies with British Standard BS6808: Co-ordinate Measuring Machines.


This is a great price for a fully tested Renishaw MCG1 with 90 Day Warranty.

Purchase with confidence from a Paypal verified retailer.

If what you order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs.

If you have any questions feel free to contact us. With 35 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
