We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New: A brand-new, unused, unopened, undamaged item in packaging.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: MACHINE TOOL M4 CERAMIC STYLI
MPN: A-5004-6464

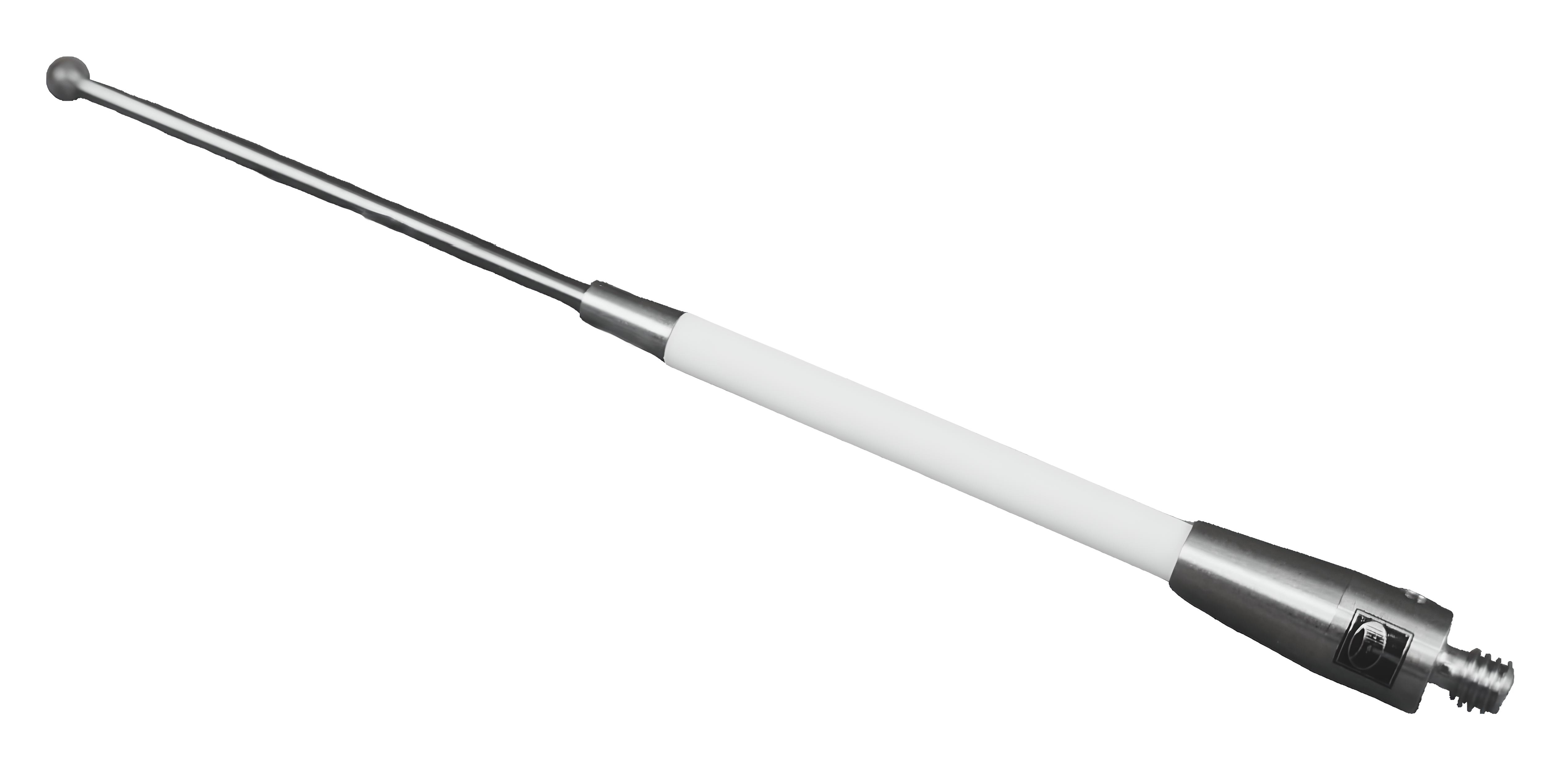

Renishaw M4 OSP60 M4 Ø3 mm Ruby Ball, Ceramic Stem, L 100 mm New with 1 Year Warranty.
OSP60 specific styli to suit individual application requirements. The OSP60 probe is built on SPRINT™ Technology.

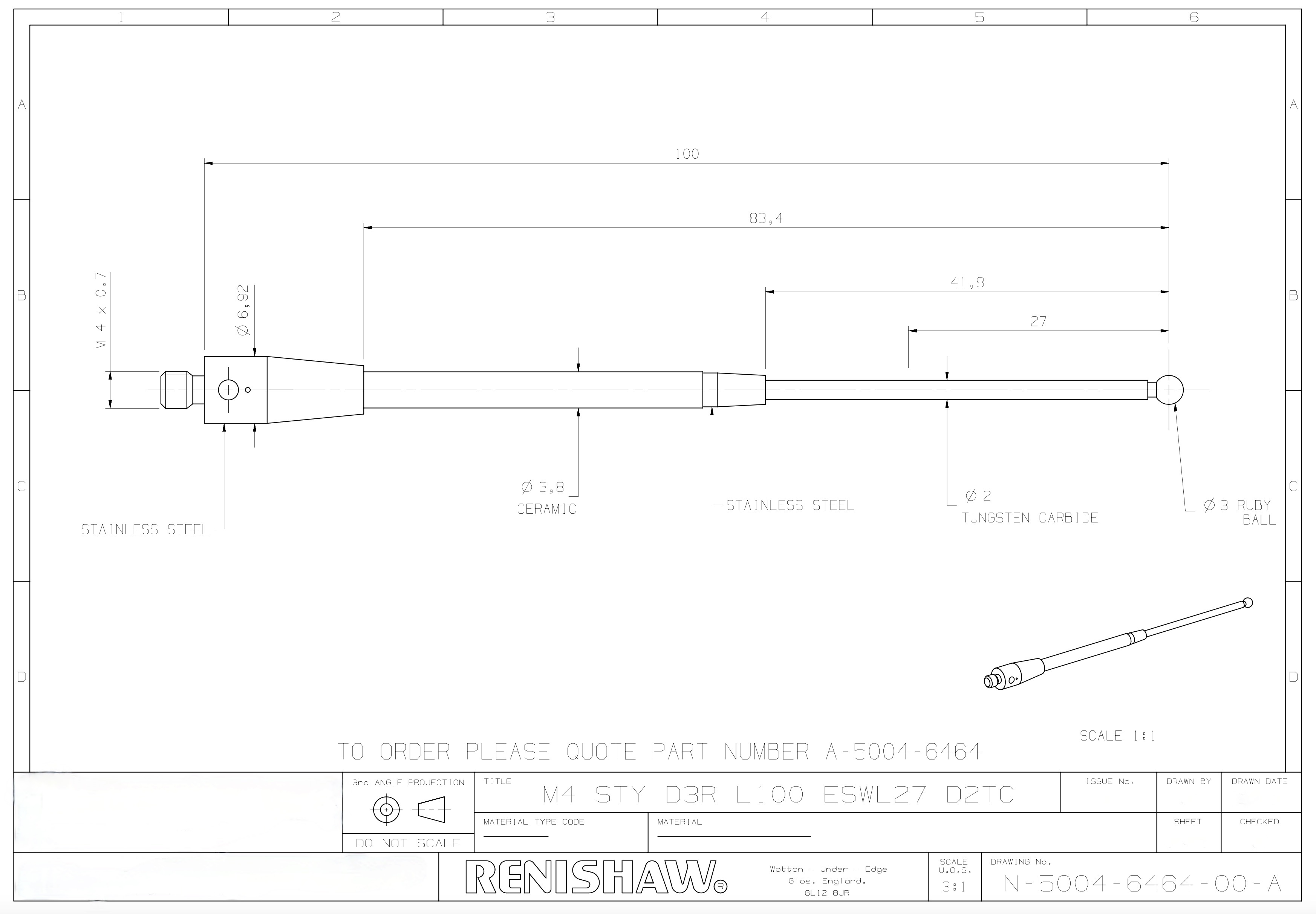

A-5004-6464 Technical Drawing
A few simple rules can be applied to maximize accuracy for most probing applications.
Technical Table
| Ball diameter (mm) | 3 |
|---|---|
| Centre styli | N |
| ESWL (mm) | 27 |
| EWL (mm) | 27 |
| Holder material | Stainless steel |
| Overall length (mm) | 100 |
| Stem diameter (mm) | 3.8 |
| Stem material | Ceramic |
| Thread | M4 |
| Tip material | Ruby |
Overall Length
Renishaw uses a standard description of overall length, measured from the rear mounting face of the stylus to the centre of the ball.
This is measured from the centre of the ball to the point at which the stem will foul against the feature when measuring 'normal' to the part.
A few simple rules for stylus selection can be applied to maximize accuracy for most probing applications
The more the stylus bends or deflects, the lower the accuracy. Probing with the minimum stylus length for your application is the best option.
Every time you join styli and extensions, you introduce potential bending and deflection points. Try, wherever possible, to keep to the minimum number of pieces possible for your application.
There are several reasons for this:
it maximises your ball/stem clearance, thereby reducing the chance of false triggers caused by 'shanking out' on the stylus stem, and increasing the EWL; a larger ball allows a larger stem diameter, increasing the stiffness of the stylus; the larger ruby ball reduces the effect of the surface finish of the component being inspected. EWL can also be affected by assembly tolerances. For this reason Renishaw styli are assembled to exacting standards in controlled conditions.
This is by far the best price you will find on a Renishaw M4 OSP60 M4 Ø3 mm Ruby Ball, Ceramic
Stem, L 100 mm New with 1 Year Warranty. Purchase with confidence from a Paypal verified retailer. If
what you order is not what you receive you will be refunded the full purchase price of this sale.
Metrology Parts would like the opportunity to earn your business for this sale and all of your future
Renishaw needs. If you have any questions feel free to contact us. With 36 plus years of experience
with Renishaw products we can help with all of your application needs as well as your after sales
support.
