Model: M2 CARBON FIBER STYLI
Renishaw M2 Ruby Carbon Fiber 100x4mm CMM Styli New in Box with 1 Year Warranty.

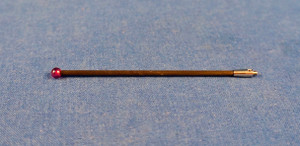

M2 Ø4 mm Ruby Ball, Carbon Fibre Stem, L 100 mm, EWL 100 mm
Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A carbon fibre stem is very lightweight and ideal for applications where weight is critical. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.
Equivalent to Q-Mark part number: TM2-40102-G.
A few simple rules can be applied to maximize accuracy for most probing applications.
|Ball diameter (mm)
|Overall length (mm)
|Stem diameter (mm)
Renishaw uses a standard description of overall length, measured from the rear mounting face of the stylus to the centre of the ball.
This is measured from the centre of the ball to the point at which the stem will foul against the feature when measuring 'normal' to the part.
A few simple rules for stylus selection can be applied to maximize accuracy for most probing applications
The more the stylus bends or deflects, the lower the accuracy. Probing with the minimum stylus length for your application is the best option.
Every time you join styli and extensions, you introduce potential bending and deflection points. Try, wherever possible, to keep to the minimum number of pieces possible for your application.
EWL can also be affected by assembly tolerances. For this reason Renishaw styli are assembled to exacting standards in controlled conditions.
This is by far the best price you will find on this Renishaw M2 Ruby Carbon Fiber
100x4mm CMM Styli New in Box with 1 Year Warranty. Purchase with confidence
from a Paypal verified retailer. If what you order is not what you receive you will be
refunded the full purchase price of this sale. Metrology Parts would like the opportunity
to earn your business for this sale and all of your future Renishaw needs. If you have
any questions feel free to contact us. With 36 plus years of experience with Renishaw
products we can help with all of your application needs as well as your after sales support.
