We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: HPPA 10" REAR EXIT ASSEMBLY
MPN: A-2275-0183
Item Description

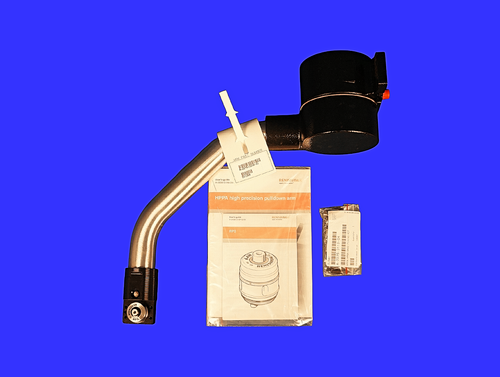

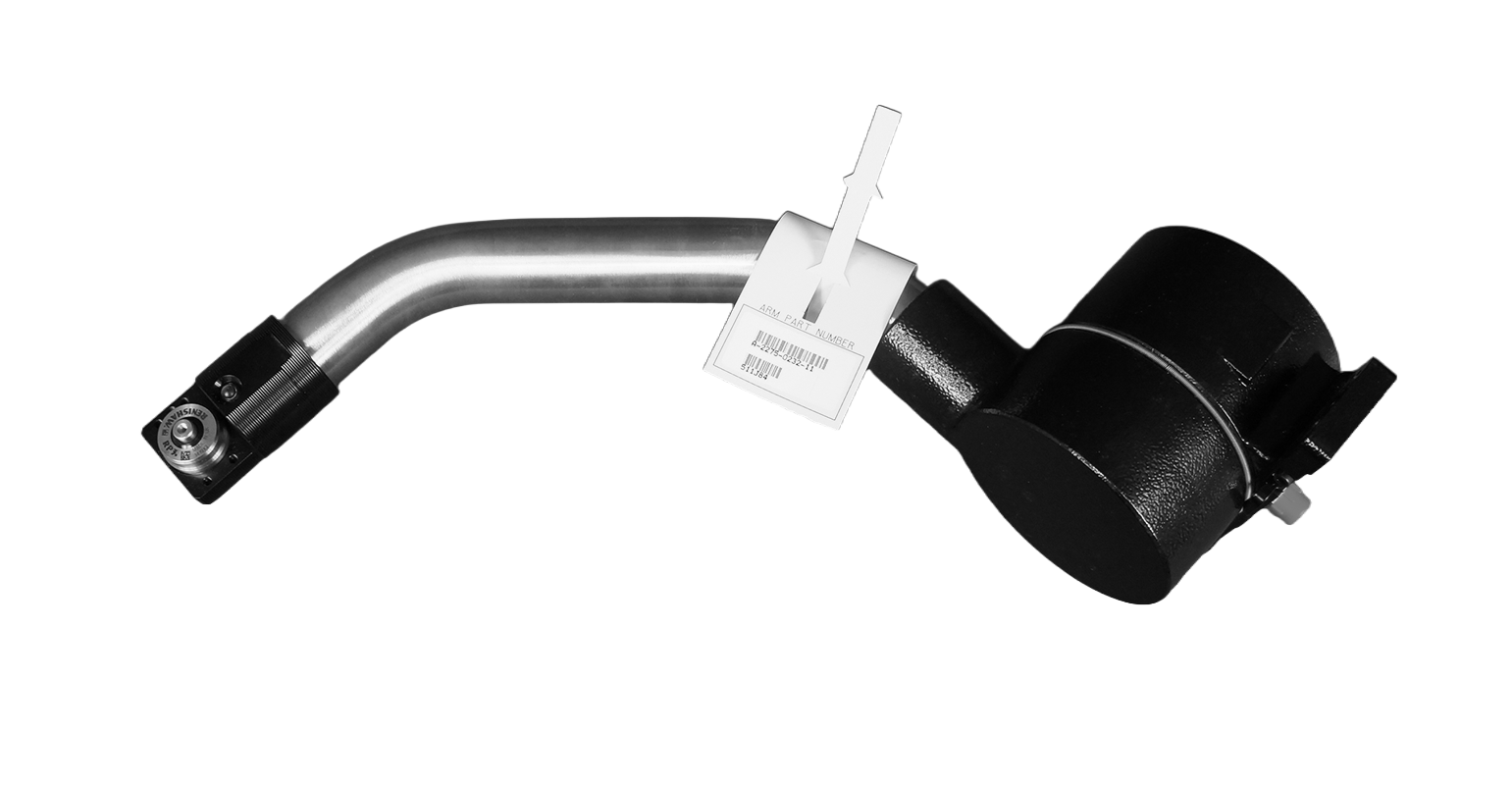

Renishaw HPPA Rear-Exit Installation Kit & RP3 Probe (for 10 inch chuck) New with 1 Year Warranty.
A simple, manually operated 'pull-down, push-up' system, which is permanently located within a turning centre and readily available for high-precision tool setting operations.
| A-dimension (mm) | 335 |
| B-dimension (mm) | 298 |
| Cable configuration | Rear-exit |
| Chuck size | 10 |
HPPA Pulldown Arm & Interface

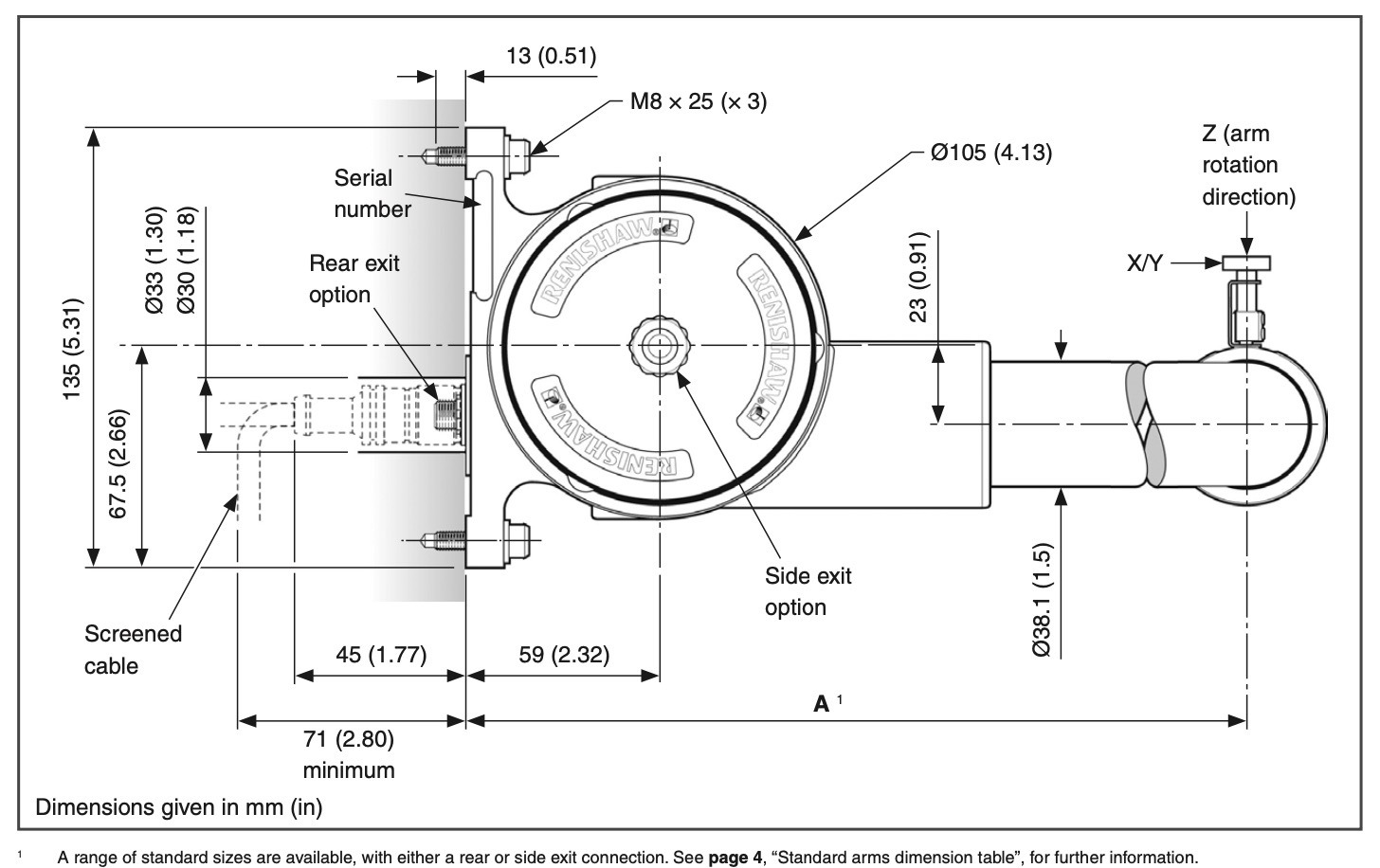

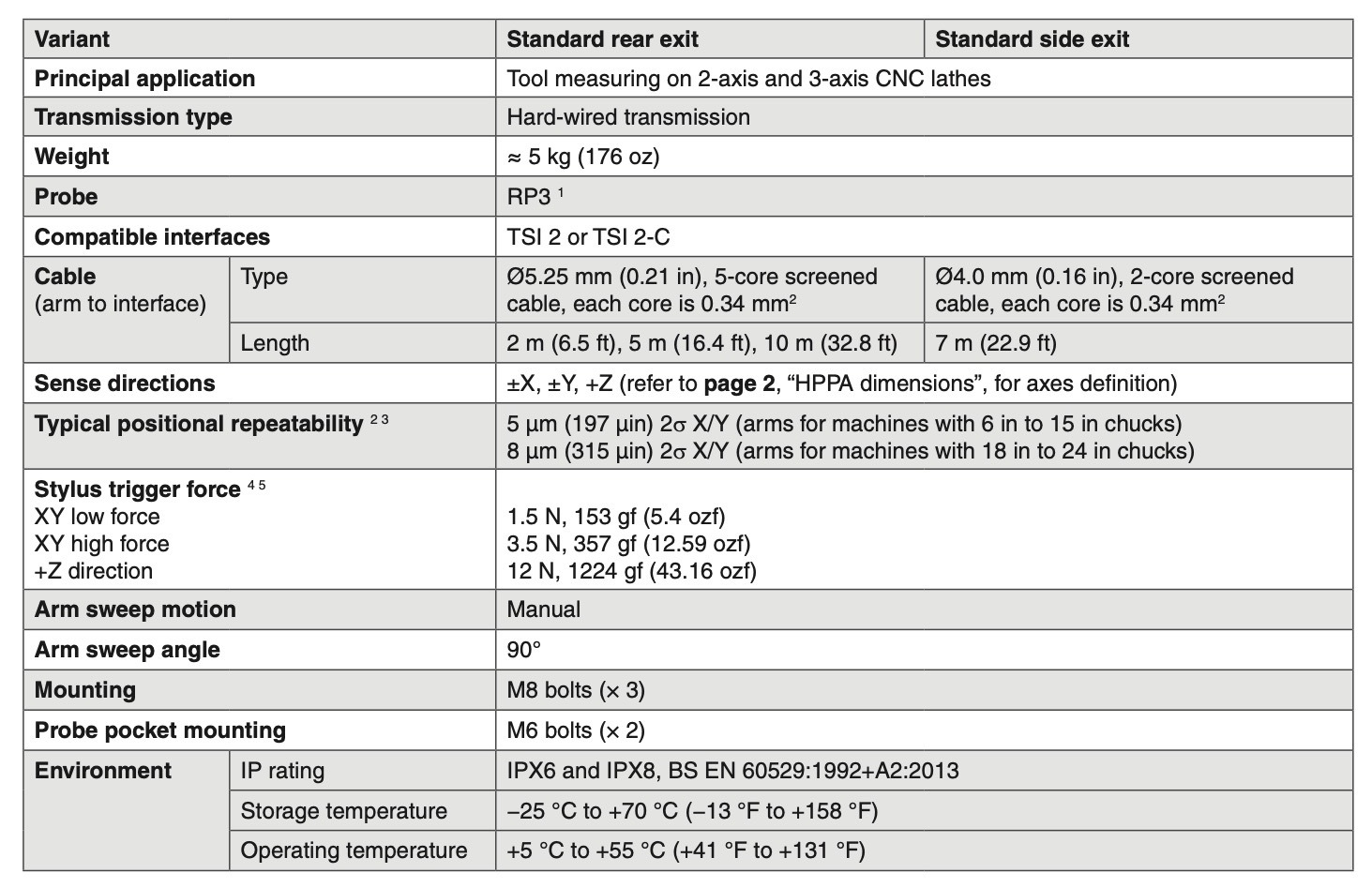

Specification & Dimensions
Where the RP3 is to be used in the probe’s Z axis, a five-faced stylus is available to order from the Renishaw Online store at www.renishaw.com/shop. Test conditions: Stylus length: 22 mm (0.87 in) Stylus velocity: 36 mm/min (1.42 in/min). Repeatability performance is not specified in the arm rotational axis. Refer to page 2, “HPPA dimensions”, to identify this axis. Trigger force, which is critical in some applications, is the force exerted on the stylus by the tool when the probe triggers. The maximum force applied will occur after the trigger point (overtravel). The force value depends on related variables including measuring speed and machine deceleration. These are the factory settings; manual adjustment is not possible.

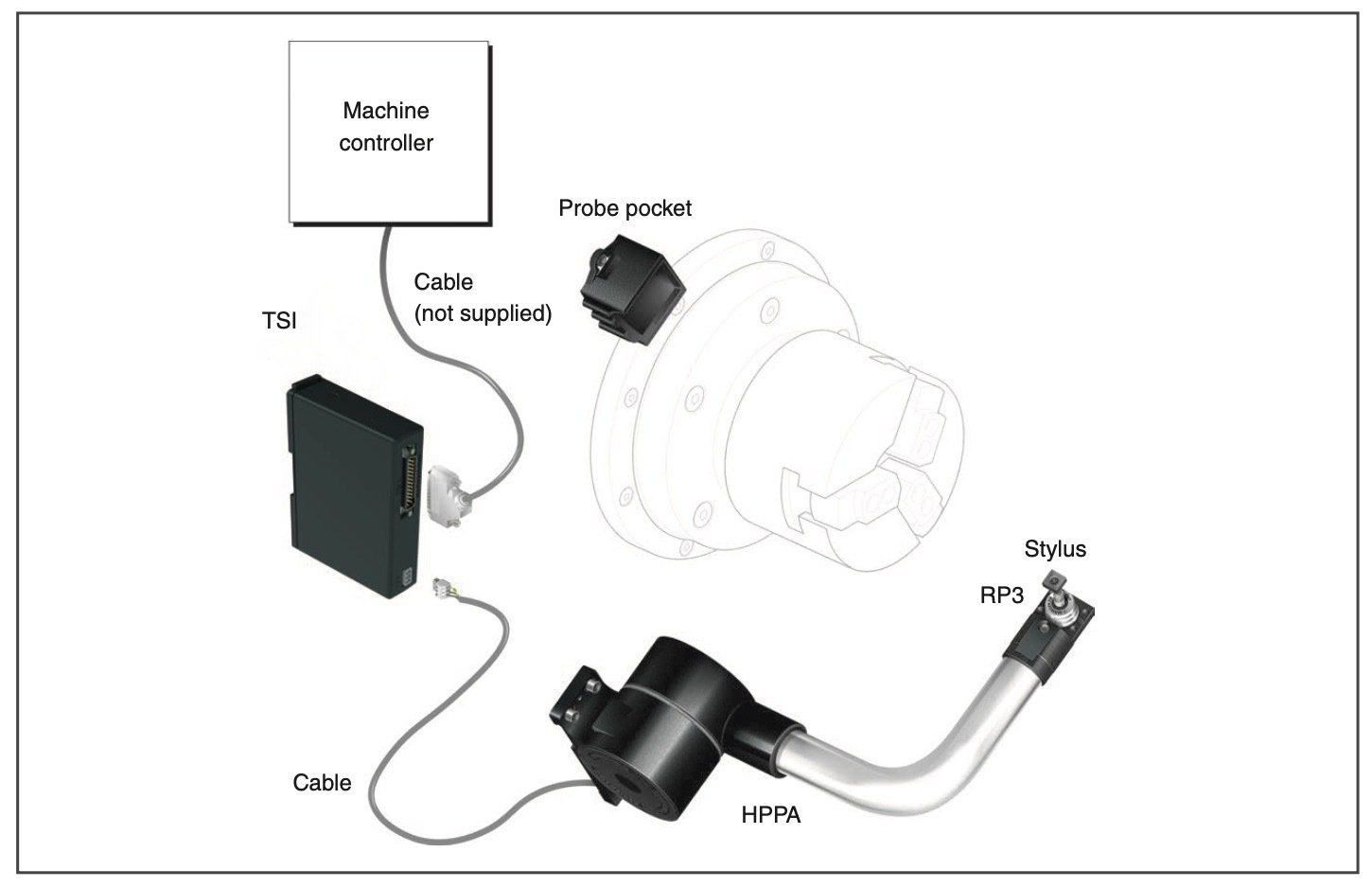

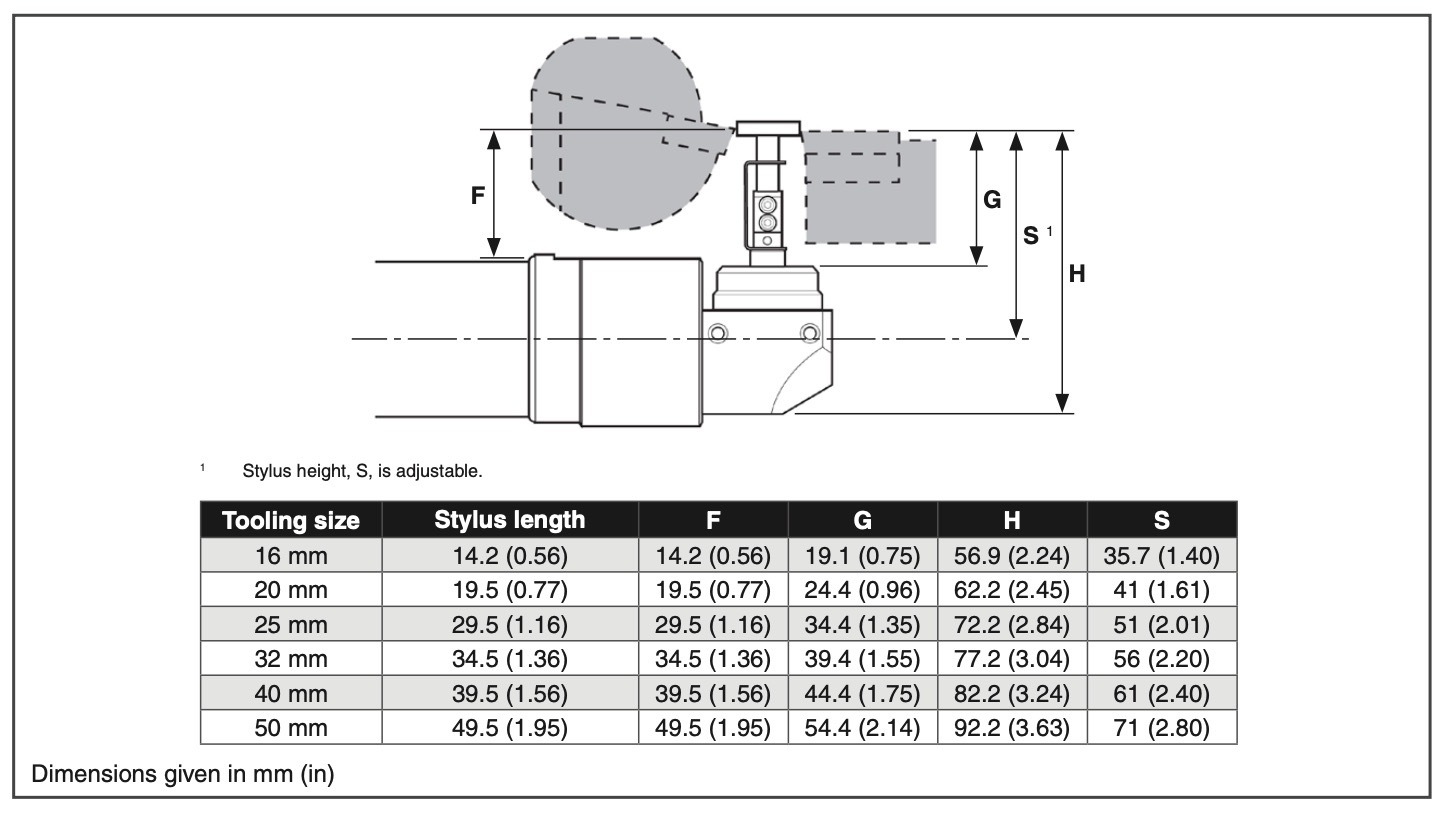

HPPA Typical System & Tooling Dimensions

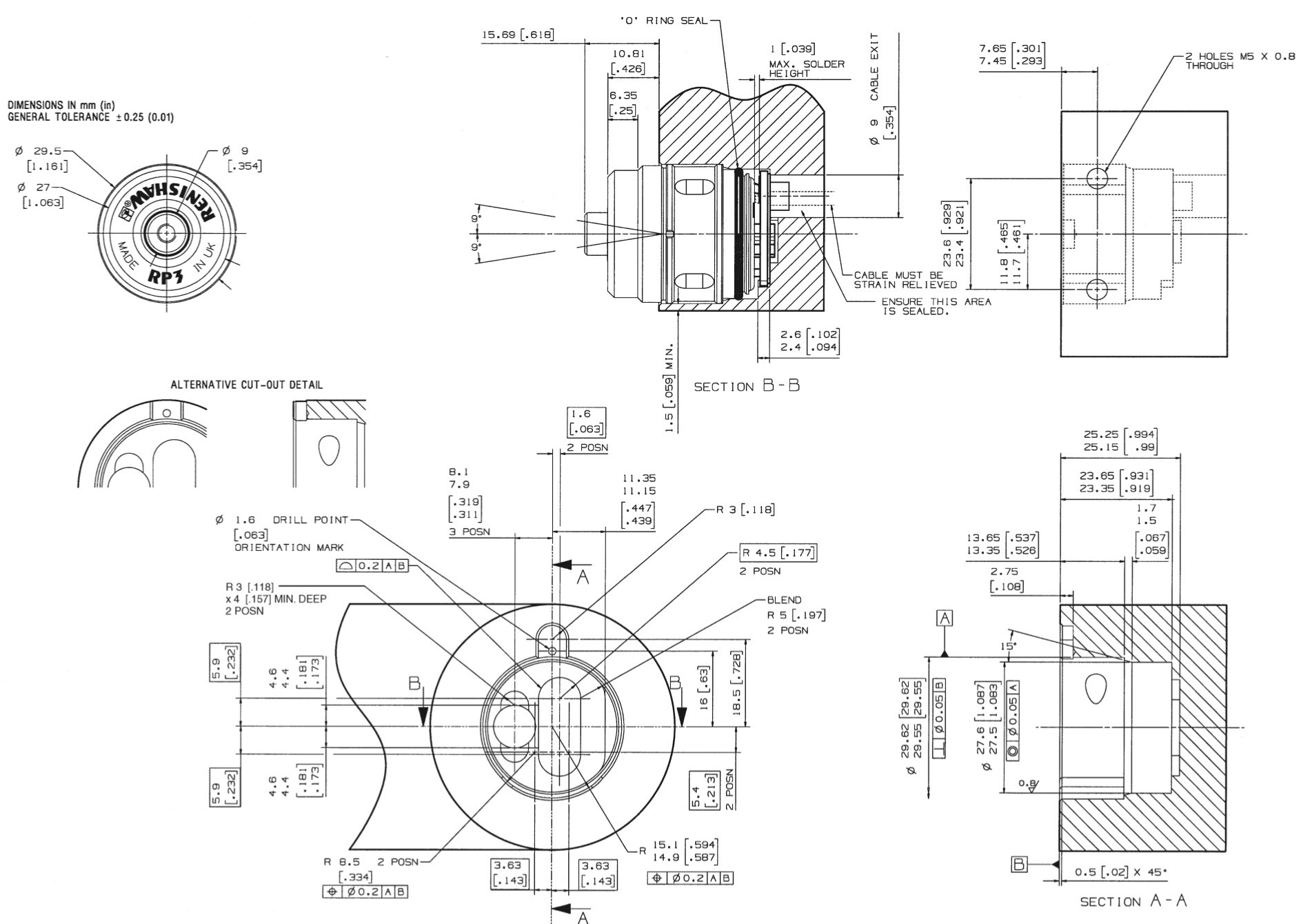

RP3 Mounting & Dimensions
This is a great price for a Renishaw HPPA Rear-Exit Installation Kit & RP3 Probe (for 10 inch chuck)
New with 1 Year Warranty. Purchase with confidence from a Paypal verified retailer. Why pay retail prices
when you can purchase from Metrology Parts. If what you order is not what you receive you will be
refunded the full purchase price for this sale. Metrology Parts would like the opportunity to earn your
business for this sale and all of your future Renishaw product needs. If you have any questions feel free to
contact us. With 36 plus years of experience with Renishaw products we can help with all of your
application needs as well as your after sales support.
