Item Description
Renishaw HAAS Wireless Intuitive Probing System New Stock with 1 Year Warranty.
What's In The Box:
OMP40-2 * OTS 1/2 AA * OMI2-H * A-5000-3709 Styli
Haas Wireless Intuitive Probing System (WIPS)
Reduce setup time using the Haas Wireless Intuitive Probing System. The Haas Wireless Intuitive Probing System (WIPS) guides the operator through the job set-up process with easy-to-use templates. WIPS has the ability to define work offset coordinates, set tool length offsets, and perform in-process inspection within the program.
The WIPS Consists of:
OMP40-2 Optical Transmission Probe:
* For workpiece inspection and job set-up on small to medium machining centres and small multi‑tasking machines * Flexible probing solution Reliable modulated optical transmission * Outstanding performance for less scrap and higher profits *
OTS 3D Touch-Trigger Tool Setter:
* For tool measuring and broken tool detection on small to medium machining centres * Rapid measurement of tool length and diameter * Cable-free for unrestricted machine movement * Direction-adjustable infrared optical module *
OMI-2H:
* The OMI-2H is a combined optical receiver and machine interface that is designed to be mounted within the machine's working envelope *
M4 Thread Machine Tool Styli A-5000-3709
Compact touch probe with optical transmission, ideally suited to small machining centres.
About OMP40-2
The OMP40 probe has been designed specifically to meet the demands of small machining centres
and the growing family of high-speed machines fitted with small HSK and small taper spindles.
OMP40-2 is available with modulated transmission for use with OMI-2, OMI-2T and OMM-2 receivers,
offering increased resistance to light interference.
OTS Contact Tool Setting Probe:
* OTS cableless optical tool setting and broken tool for
vertical machining centres * The OTS can be used as part of a Twin Probe System twin probe system,
either with a second OTS (e.g. on machines with twin pallets), or with a suitable inspection probe
About OTS
The cableless OTS with optical signal transmission allows unrestricted machine motion and ease of installation on CNC machining centres
Functions
* Setting tool lengths in Z * Setting rotating tools in X and Y for radius offsets * Tool breakage detection *
OMI-2H
The OMI-2H is a combined optical receiver and machine interface that is designed to be mounted within the machine's working envelope. The OMI-2H operates using a ‘Modulated' optical transmission mode and is compatible with machine probes that also operate in ‘Modulated' mode.

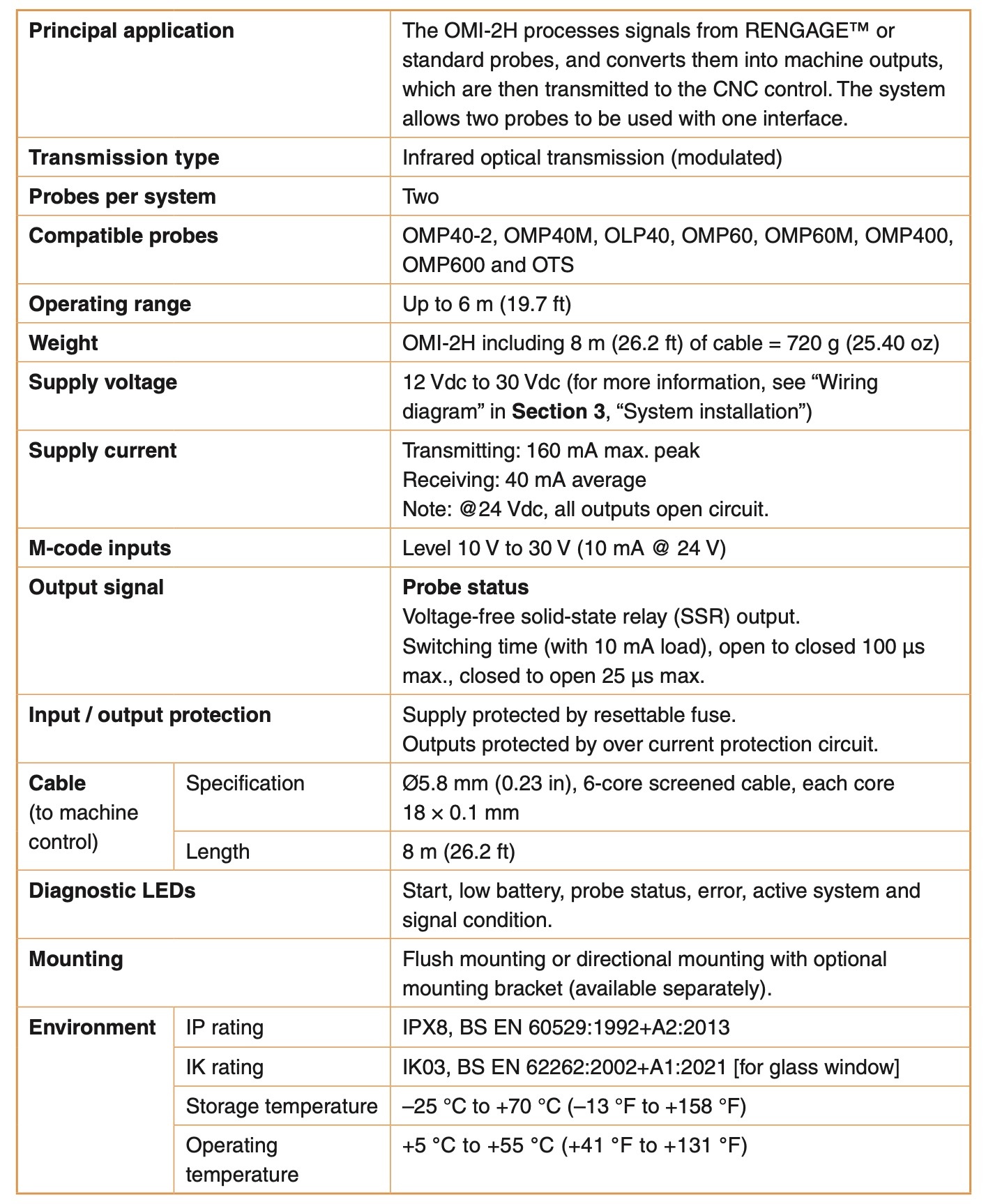

OMI-2H Specification
M4 Ø6 mm Ruby Ball, Ceramic Stem, L 50 mm, EWL 38.5 mm
Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A ceramic stem is lightweight yet very stiff and offers built-in crash protection. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts. Equivalent to Q-Mark part number: TM4-6053-C.
This by far is the best price you will find for a Renishaw WIPS Kit New with 1 Year Warranty. Purchase
with confidence from a Paypal verified retailer. If what you order is not what you receive you will be
refunded the full purchase price for this sale. Metrology Parts would like the opportunity to earn your
business for this sale and all of your future Renishaw product needs. If you have any questions feel free
to contact us. With 36 plus years of experience with Renishaw products we can help with all of your
application needs as well as your after sales support.
