Renishaw OMP40-2 Machine Tool Probe & HSK DIN 69893 A+C 50 New - 1 Year Warranty

MSRP: $5,117.00
$3,000.00
(You save $2,117.00)
(No reviews yet) Write a Review
Condition:
New
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:

New – Open box: An item in excellent, new condition with no functional defects. The item is missing part of the original packaging. Comes with all accessories found with the original product and a 1 Year Warranty.



Country Of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW HAAS

Model:   OMP40-2 & HSK A50 SHANK

MPN:   A-4071-2001 A-4071-0001 M-4071-0047



Item Description

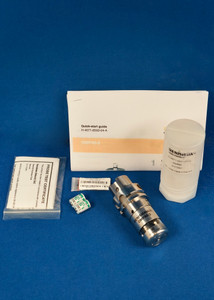

Renishaw OMP40-2 Tool Probe & HSK DIN 69893 A+ C 50 Shank New with 1 Year Warranty.

renishaw-omp40-2-machine-tool-probe-hsk-din-69893-a-c-50-shank-parts-precision-measuring-systems-.jpeg

OMP40-2 Compact Touch Probe
About OMP40-2
The OMP40 probe has been designed specifically to meet the demands of small machining centres and the growing family of high-speed machines fitted with small HSK and small taper spindles. OMP40-2 is available with modulated transmission for use with OMI-2OMI-2T and OMM-2 receivers, offering increased resistance to light interference.

* Performance specification is tested at a standard test velocity of 480 mm/min (18.9 in/min) with a 50 mm stylus. Significantly higher velocity ispossible depending on application requirements.

* Trigger force, which is critical in some applications, is the force exerted on the component by the stylus when the probe triggers. The maximum force applied will occur after the trigger point (overtravel). The force value depends on related variables, including measuring speed and machine deceleration.

* These are the factory settings; manual adjustment is not possible.


OMP40-2 System Options


OMP40-2 Software Options

The following software packages can be used to program probing routines for work piece set-up and inspection on CNC machining centres

EasyProbe - entry-level package for simple work piece set-up

Inspection - basic set-up and work piece inspection cycles, with automatic update of offsets

Inspection plus - an integrated suite of inspection cycles including vector measurement

Productivity + Active Editor Pro - a PC-based software package with GUI, allowing the user to select

    features directly from an imported CAD model, making the generation of probing cycles even easier.

A+C 50 Shank

Technical Table

Gauge length A (mm) 42.25
HSK A+C 50
Shank type HSK

This shank is designed to secure the probe into a HSK A+C 50 machine tool spindle. Shank gauge length 42.25 mm (1.663 inches), and it is suitable for OMP40 and OMP400 probes



This is a great price for a Renishaw OMP40-2 Tool Probe & HSK DIN 69893 A+C 50 Shank New

with 1 Year Warranty. Purchase with confidence from a Paypal verified retailer. If what you order is not

what you receive you will be refunded the full purchase price for this sale. Metrology Parts would

like the opportunity to earn your business for this sale and all of your future Renishaw product needs.

If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw

products we can help with all of your application needs as well as your after sales support.
