Renishaw CMM PHC10-3 PLUS + PI200-3 Probe Controller New in Box 1 Year Warranty A-5863-0200

MSRP: $4,124.00
$2,675.00
(You save $1,449.00)
(No reviews yet) Write a Review
Weight:
8.00 LBS
Shipping:
Calculated at Checkout

Product Description



Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).







Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   PHC10-3 PLUS WITH INTERNAL PI200-3

MPN:   A-5863-0200

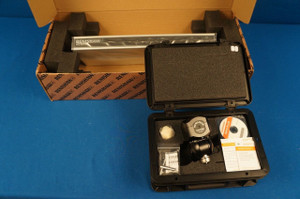

                                            Image result for Renishaw CMM PHC10-3 PLUS





Item Description



New In Box with 1 Year Warranty Renishaw PHC10-3 PLUS + InternalPI200-3 Motorized Probe Head Controller for all Renishaw PH10 probe heads.

The PHC10-3 PLUS has now replaced the PHC10-2 which is no longer available from Renishaw.

The PHC10-3 PLUS supports both RS232 and USB communication.

Current retail price for the PHC10-3 PLUS  with Internal PI200-3 is $3928.00

PHC10-3 PLUS head controller

PHC10-3 PLUS head controller receives instructions from the CMM control. The PHC10-3 PLUS controls all head functions and reports system status to the CMM:

  • Drives Legacy PH10 (PH10T, PH10M or PH10MQ) and all PH10 PLUS heads to position - sent either from the HCU1 or CMM.
  • Checks and reports position
  • Flags up errors, e.g. failure to reach position, obstruction before or after locking etc.

The PHC10-3 PLUS with Internal PI200-3 processes the probe sensor signals TP200 and Standard Probing.



PHC10-3 PLUS specification

Length 180 mm
Width 440 mm
Height 44 mm
Weight 1.5 Kg
Data transmission RS232 or USB
Current Consumption
(at 240V)
less than 1 A
PSU electrical ratings
Supply voltage: 100-240 V ± 10%
Frequency range: 50/60 Hz
Power consumption: 49 W max.
Transient voltages: Installation category II
Input connectors 15 way 'D'
Power supply 24 V DC 49 W provided by the Emerson PSU (DP4024N3M) power adaptor
Probe output connectors 7-pin DIN or 9-way 'D' type

Maximum cable length
RS232
USB


50 m
5 m (extendible in lengths of 5 m by use of a hub, to a maximum length of 30 m)

Hand held control unit HCU1 and HCU2



This is by far the best price you will find on a new Renishaw PH10-3 PLUS + PI200-3 probe head controller with warranty.

Why pay retail prices when you can purchase new with warranty from Metrology Parts.

Purchase with confidence from a Paypal verified retailer.

If what you order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs.

If you have any questions feel free to contact us. With 34 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
