Renishaw CMM PH10T Motorized Probe Head PHC10-2 RS232 Controller HCU1 Warranty A-1025-1520 A-1368-0100 A-1345-0220

MSRP: $25,718.00
$5,250.00
(You save $20,468.00)
(No reviews yet) Write a Review
Condition:
Used
Weight:
10.00 LBS
Shipping:
Calculated at Checkout

Product Description



Condition:

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.







Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   PH10T PHC10-2 HCU1

MPN:   A-1025-1520 A-1368-0100 A-1345-0220







Item Description

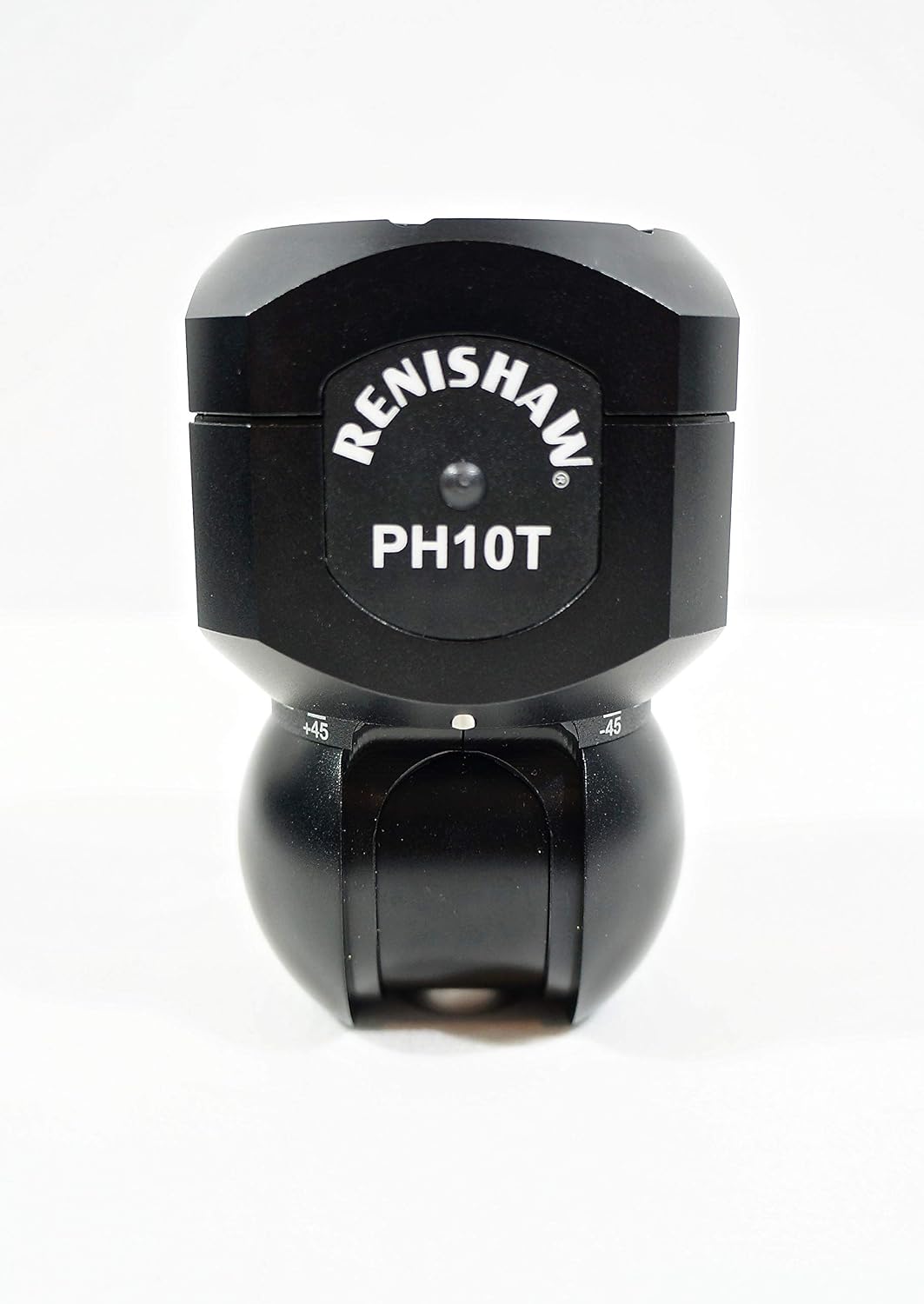

Renishaw PH10T motorized probe head PHC10-2 RS232 motorized probe head controller and HCU1 hand control unit fully tested with 90 day warranty

Retail price for this package is $25718.00

                                                                                               Renishaw PH10T CMM Probe Head New in Box with 1 Year Warranty: Amazon.com:  Industrial & Scientific

PHC10-2 head controller

PHC10-2 head controller receives instructions from the CMM control. The PHC10-2 controls all head functions and reports system status to the CMM:

  • Drives PH10 (PH10T, PH10M or PH10MQ) to position - sent either from the HCU1 or CMM.
  • Checks and reports position
  • Flags up errors, e.g. failure to reach position, obstruction before or after locking etc.

The PHC10-2 does not process any of the probe sensor signals. These are railed clean through the heads axes and controller to the probe interface.



                                                                                    PHC10-2



PHC10-2 specification

Length 220 mm
Width 289.3 mm
Height 88 mm
Weight 2.86 Kg
Data transmission IEEE
Current Consumption (at 240V) less than 500mA
Voltage range 85 V to 264 V 47/66 Hz automatic selection
Input connectors 15 way 'D'
Probe output connectors 7-pin DIN or 9-way 'D' type
Mounting Rack mounted or stand alone
Hand control unit HCU1 only

HCU1 hand control unit

HCU1 is a portable head drive and position display unit for use with the PHC10-2 motorised head controller. This is invaluable for setting up a component, operator controlled inspection and teach-cycle programming.

It allows an operator to manually change the orientation of the head without the need for sending commands through the CMM controller.

Features include two speed action (jog and rapid move), two axis head display, transmit button for teach cycle, status and error LEDs.



                                                                                           HCU1



This is by far the best price you will find on a fully tested with 90 Day Warranty Renishaw PH10T motorized probe system.

Why pay retail prices when you can purchase with warranty from Metrology Parts.

Purchase with Paypal from Metrology Parts a Paypal verified retailer.

If what you order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs.

If you have any questions feel free to contact us. With 34 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
