Renishaw CMM PH10MQ PLUS PHC10-3 TP20 3 Modules New in Boxes with Warranty

MSRP: $30,086.00
$15,000.00
(You save $15,086.00)
(No reviews yet) Write a Review
Condition:
New
Weight:
12.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).





Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   PH10MQ PLUS PHC10-3 PLUS TP20

MPN:   A-5863-3000 A--5863-0100 A-1371-0291 A-1371-0272 A-1051-0417





Item Description

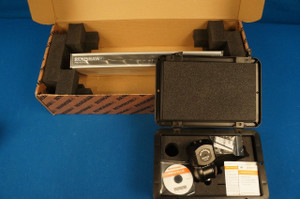

Renishaw PH10MQ PLUS Motorized Probe Head, Renishaw PHC10-3 PLUS Probe Head Controller (which has now replaced the PHC10-2) PAA1 Autojoint & Renishaw TP20 Modular Touch Probe System with 3 Probe Modules all new in boxes with 2 Year Warranty.




Renishaw List Price $$30,086.00





 About PH10

The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.

All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance.

PH10MQ PLUS

The PH10MQ is a variant of the PH10M that allows the motorised head to be attached directly to the quill with the B axis of the head inside the quill itself. This option provides a neater and shorter probe mount, with only the A axis protruding from the quill.

PH10MQ specification

Length 73 mm
Width 80 mm
Weight 730 g
Probe mounting Autojoint (multiwire)
Head mounting Direct to quill
Suitable controller PHC10-3 PLUS
Repeatability of position 0.4 µm (0.00002 in) specified at a distance of 62  mm
Total no. of positions 720
Max recommended drive torque 0.45 Nm
Maximum extension bar 300 mm (11.8 in) using PAA3 extension

renishaw-tp20-probe-module-specification-.jpeg  renishaw-tp20-probe-module-option-list-.jpeg
PHC10-3 PLUS head controller

PHC10-3 head controller receives instructions from the CMM control. The PHC10-3 controls all head functions and reports system status to the CMM:

  • Drives PH10 (PH10T, PH10M or PH10MQ) to position - sent either from the HCU1 or CMM.
  • Checks and reports position
  • Flags up errors, e.g. failure to reach position, obstruction before or after locking etc.

The PHC10-3 does not process any of the probe sensor signals. These are railed clean through the heads axes and controller to the probe interface.



PHC10-3 PLUS specification

Length 180 mm
Width 440 mm
Height 44 mm
Weight 1.5 Kg
Data transmission RS232 or USB
Current Consumption
(at 240V)
less than 1 A
PSU electrical ratings
Supply voltage: 100-240 V ± 10%
Frequency range: 50/60 Hz
Power consumption: 49 W max.
Transient voltages: Installation category II
Input connectors 15 way 'D'
Power supply 24 V DC 49 W provided by the Emerson PSU (DP4024N3M) power adaptor
Probe output connectors 7-pin DIN or 9-way 'D' type

Maximum cable length
RS232
USB


50 m
5 m (extendible in lengths of 5 m by use of a hub, to a maximum length of 30 m)

Hand held control unit HCU1 HCU2



PH10T PLUS or PH10M PLUS can be shipped for the same price. PHC10-3 PLUS supports both RS 232 and USB communication. Please specify which modules you would like for the TP20, Low force, Medium force, Standard force, or Extended force in any combination. All components in this sale are new and in unopened boxes. All items will be ordered from the factory for you which is why we have a 5 day handling time. Please contact us should your application require custom cables for your installation. We also offer partial refunds for probing that you have replaced with this system.



This by far is the best price for Renishaw PH10MQ PLUS Motorized Probe Head, Renishaw PHC10-3 PLUS Probe Head Controller (which has now replaced the PHC10-2) PAA1 Autojoint & TP20

Modular Touch Probe System with 3 Probe Modules all new in boxes with 2 Year Warranty. Why pay retail prices when you can purchase new with warranty from Metrology Parts.

Purchase with confidence from a verified Paypal retailer. If what you order is not what you receive you will get a full refund for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw needs.

If you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products we can help with all your application needs as well as after sales support.
