We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
Display Model: An item in excellent, new condition with no functional defects. The item has original packaging and was used for demo purposes. The item includes accessories found with the original product and a 6 Month Warranty.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: DATUM SPHERE 19 MM
MPN: A-5642-5001
Item Description
Renishaw Axiset Check-Up Hardware & QSG Display Model with 6 Month Warranty.
Fast, automated health checks for multi‑axis machine tools.
Users of multi-axis and multi-tasking (mill-turn) machines can rapidly identify and report on poor machine alignment and geometry that can cause extended process setting times, as well as non-conforming parts.
Machine performance is reported graphically via the AxiSet Check-Up app and can be compared against user defined tolerances and historic data. The performance data can be printed in a standardized PDF report for benchmarking and reference purposes or exported as a .csv file for further analysis.
Features and Benefits
Discrete reporting of pivot point and lathe centre line error along linear axes
Provide recommended correction values for machine optimisation
Automatically update and compensate for rotary axis pivot point errors
Increase confidence before critical features are machined
Eliminate unplanned downtime, reduce scrap and increase profits
Graphical performance analysis via the AxiSet Check-Up app
Check, track and compare machine performance trends over time with PDF reporting and .csv file export functions
System Components
Macros
Written for a range of CNC controllers, AxiSet Check-Up probing macros are machine specific and available for machining centres and multi-tasking machines. These macros drive the machine, collecting measurement data.
They also offer the option to automatically update parameters and compensate for rotary axis pivot point errors.
Hardware

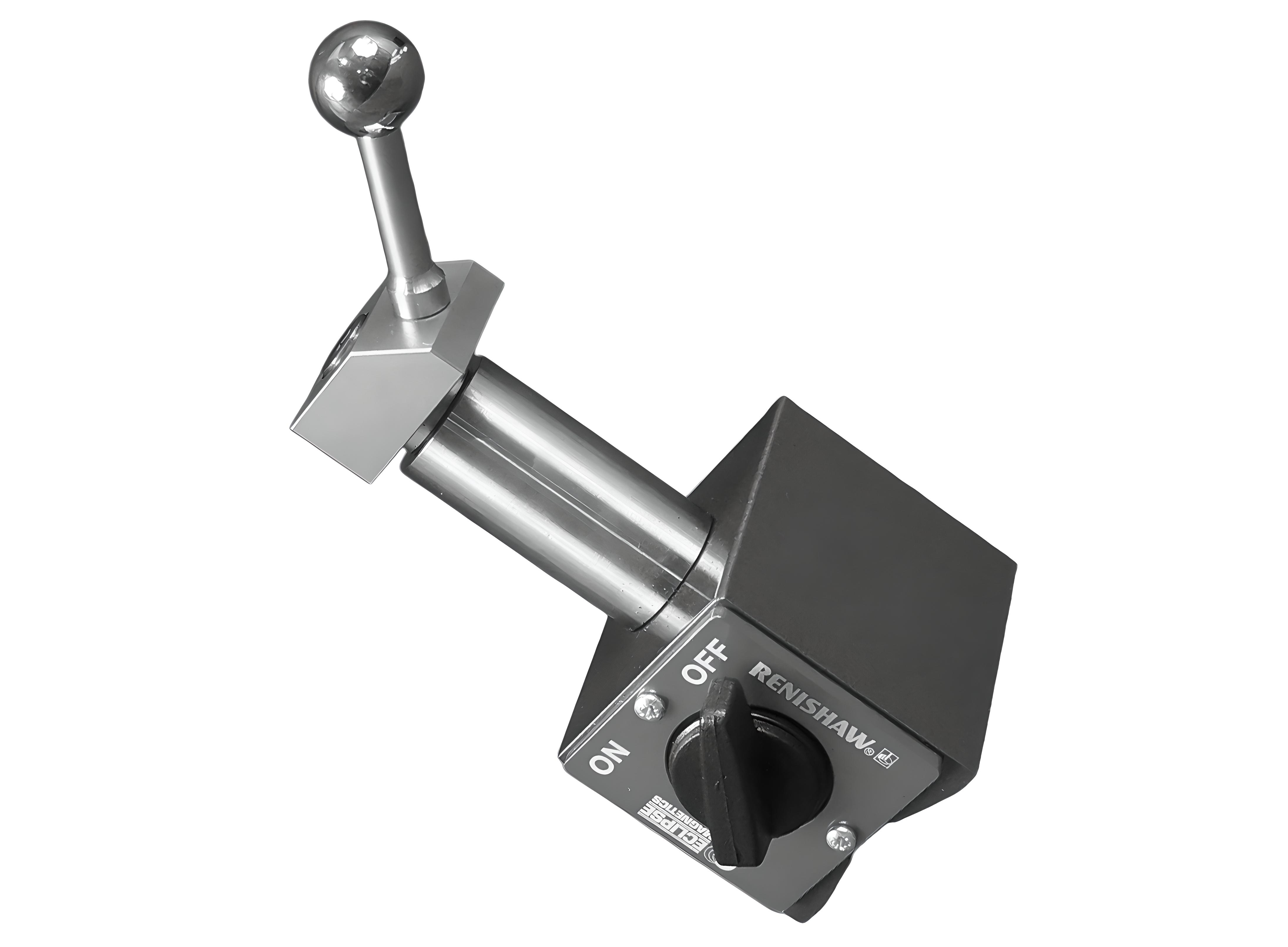

A single calibration sphere, conveniently mounted on a magnetic base, is used as a reference feature for measurements.
This simple-to-use artefact ensures that set-up time is kept to a minimum and, in most cases, does not require fixtures or parts to be removed.
App
The AxiSet Check-Up app provides a detailed and graphical representation of the measurement data produced by the macro software.
The app is installed onto a PC or tablet running Windows 10 (32 or 64 bit) or above and must be licensed before it can be used. Perpetual and evaluation licenses are available.
This is a great price for a Renishaw Axiset Check-Up Hardware & QSG Display Model with 6
Month Warranty. Purchase with confidence from a Paypal verified retailer. If what you order is
not what you receive you will be refunded the full purchase price for this sale. Metrology Parts
would like the opportunity to earn your business for this sale and all of your future Renishaw
product needs. If you have any questions feel free to contact us. With 36 plus years of
experience with Renishaw products we can help with all of your application needs as well as
your after sales support.
