Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully
Country of Manufacture: SWITZERLAND

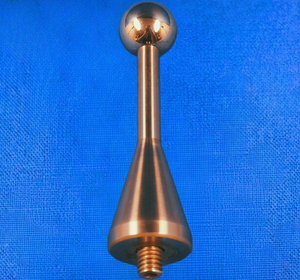

Model: DATUM CALIBRATION SPHERE
Datum Sphere Diameter:
This standard can be used on any coordinate measuring machine
Reference spheres and calibration artifacts from Mitutoyo
How to take care of the reliability of your measurement results: With calibration artifacts you can independently check the measuring accuracy of your coordinate measuring machine. Reference spheres are used to calibrate your styli.
Calibration artifacts help to closely monitor the accuracy of measuring machines. Our portfolio includes i.a. calibration artifacts for coordinate measuring machines, multisensor devices, CT measuring machines or for roughness or surface measuring devices.
References & Checks
Coordinate measuring machines are reliable in their measuring accuracy – however they need to be routinely qualified and checked. CMM checks are used for standard-compliant accuracy checks, and reference bodies (spheres and other gauges) are used to qualify sensors and styli in everyday life.
Reference Bodies and Holders
Reference spheres and bodies ensure the measuring accuracy in everyday life, and with reference to each new styli or sensor qualification. They can be optical gauges, reference spheres, ring gauges or triplets, all of which have a zero point in their center to guide the coordinate measuring machine. Depending on the measuring environment, thermally stable or standard holders are available for positioning the reference body. All products and certifications related to the coordinate measuring machine are available from a single source.
References for Different Applications
Ceramic reference spheres are available in different sizes, surface finish quality, sphericity, and connection threads (M6 or M8). Reference sphere sizes are recommended based on styli diameters. For styli less than 1 mm: Reference Sphere 8 mm. For styli 1 to 2 mm: Reference Sphere 15 mm. For styli greater than 2 mm: Reference Sphere 25-30 mm. Other Reference bodies are available for different applications. Ring gauges are used to qualify optical-tactile measuring instruments. Optical gauges are suitable for calibrating the ViScan camera and other 2D sensors. Self-center probing prisms are used to calibrate the rotary table axis of a CMM. Where appropriate, reference bodies are supplied with a certificate of calibration.
This is by far the best price you will find for a Mitutoyo 1" CMM Probe Datum Calibration
Standard Fully Tested with 90 Day Warranty. Purchase with confidence from a Paypal verified retailer
with Warranty. If what you order is not what you receive you will be refunded the full purchase price
for this sale. Metrology Parts would like the opportunity to earn your business for this sale and many
of your future Metrology product needs. If you have any questions feel free to contact us. With 36 plus
years of experience with Metrology products we can help with all of your application needs as well as
your after sales support.
