We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.
Country of Manufacture: GERMANY
Brand: ZEISS
Model: RDS ARTICULATING PROBE HOLDER
MPN: 600605-8260
Item Description

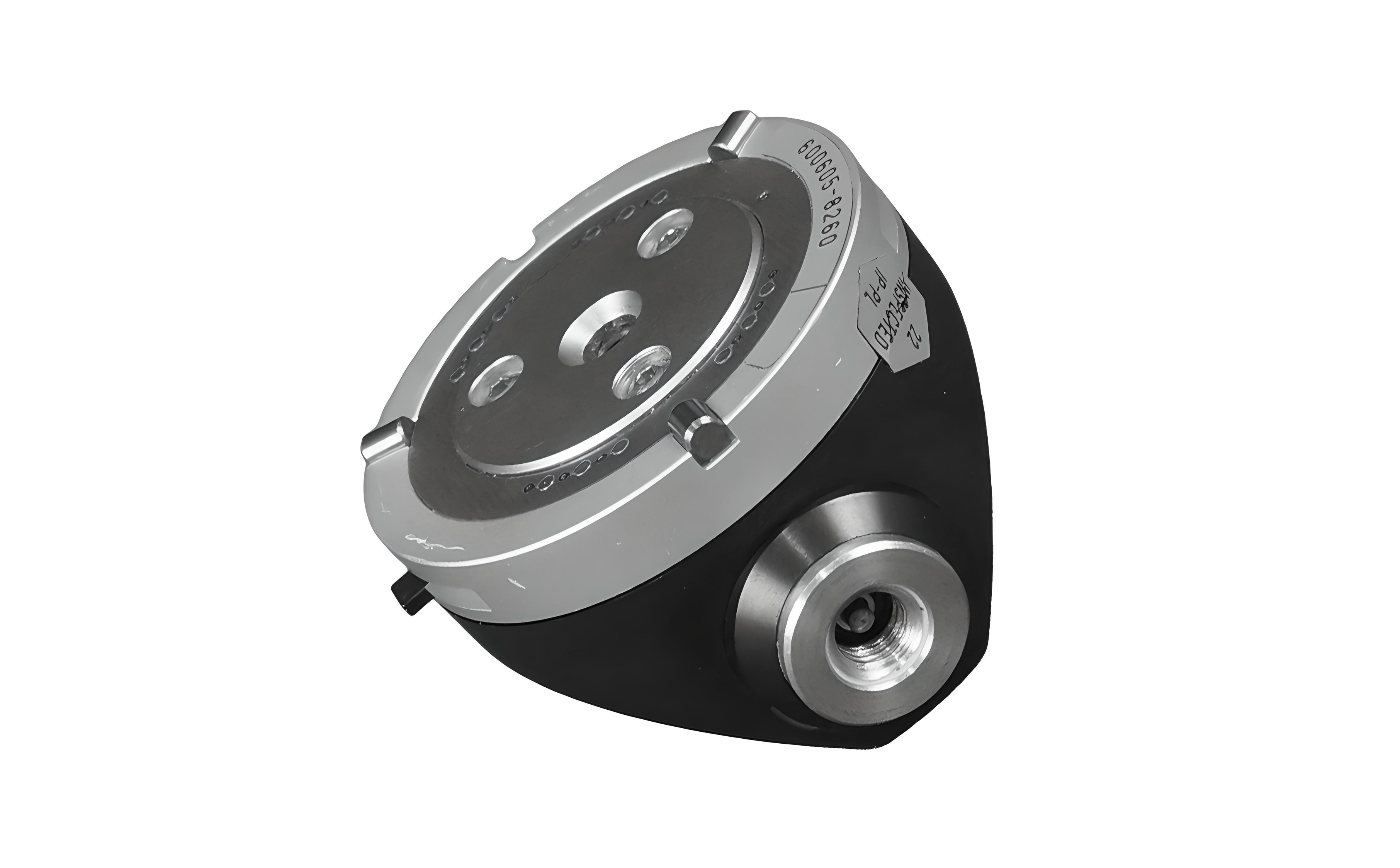

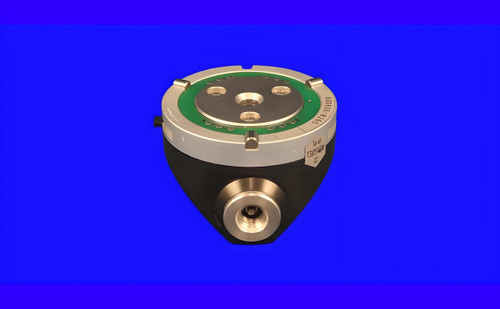

Zeiss RDS Articulating Probe Holder Fully Tested with 90 Day Warranty.
The RDS owes its generally recognized Zeiss accuracy and reliability to a number of special features.
Small indexing steps of 2.5° and high precision yield a vast number of positions.
The wide base of the Hirth-type serration and the great number of teeth guarantee utmost positioning accuracy and minute step widths.
144 x 144 – 20.736 positions with ± 1 second accuracy.
Thermal stability due to external energy siting.
The control electronics are integrated in the CMM away from RDS. No separate housing unit is needed. The serration is decoupled pneumatically and positioning is performed by low-energy motors.
High probing accuracy.
The double-trigger principle of the piezo-electric RST sensor makes the system independent of the probing position and direction, and permits extensions of up to 300 mm (12 in.) and probes of up to 90 mm (3.6 in.) in length.
The Renishaw TP6 and TP2 sensors are ma- nually or CNC changeable via a special probe- changer adapter plate with high reproducibility.
Inherent reliability.
Efficient collision protection comes from the RST sensor and disengagable adapter plate with drop protection. Active contacting delivers automatic sensor identification.
Featured ...
... in the standard initial setup or as a retrofitting option in all Zeiss CMMs with an ST3 probe head.

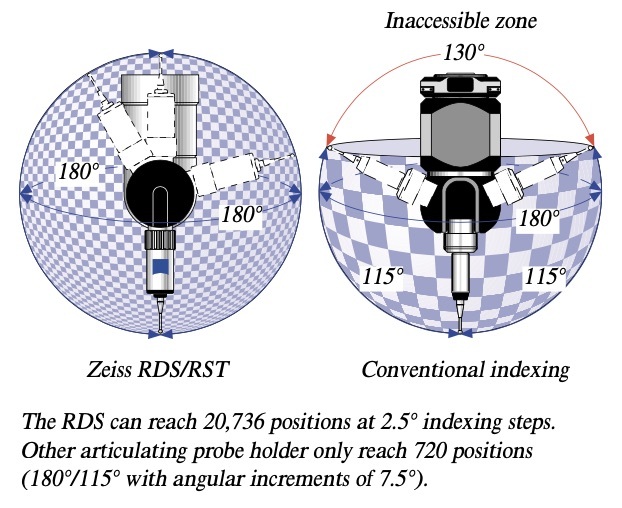

2.5° indexing steps

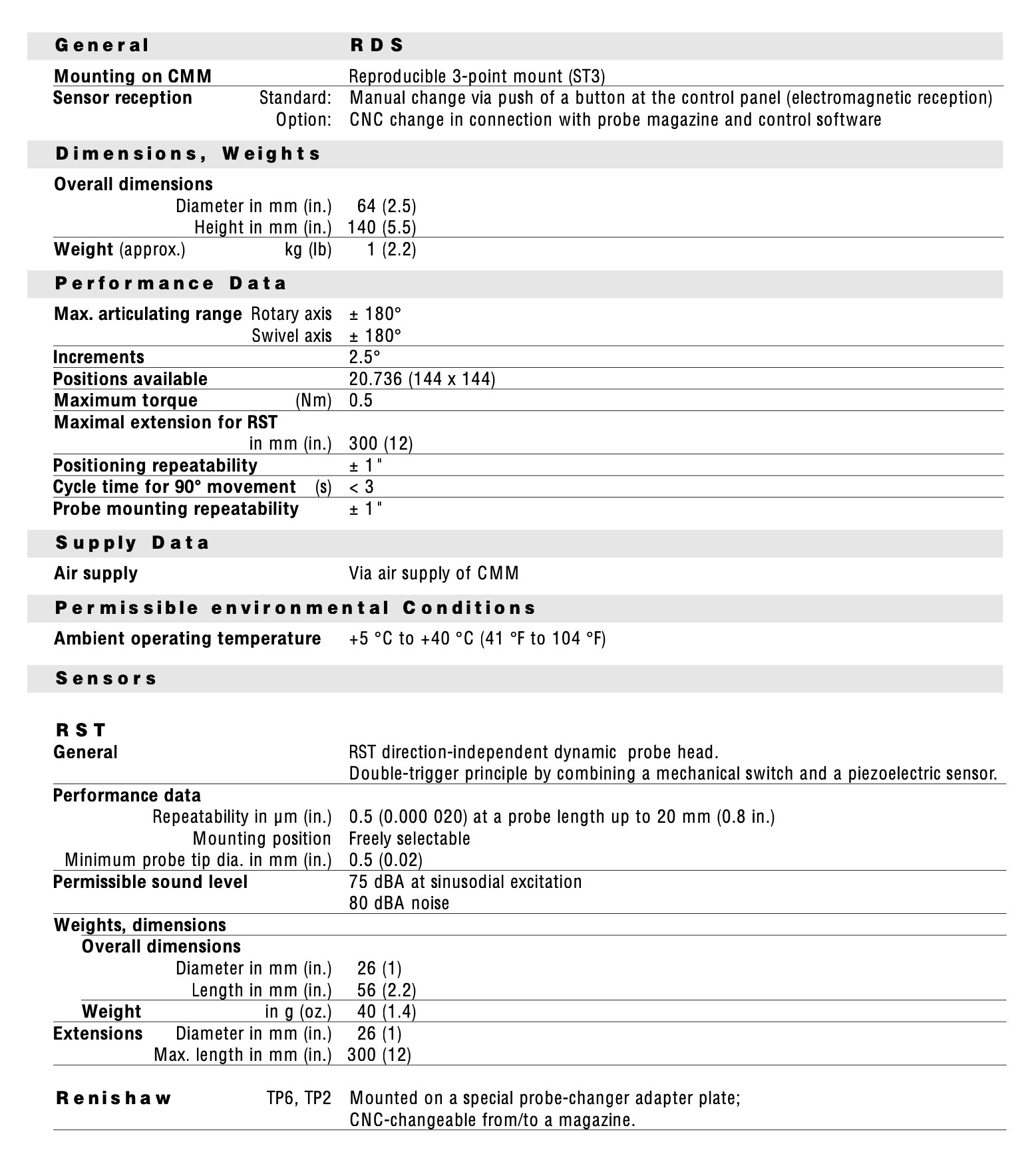

Specification
This is by the far the best price you will find on a Zeiss RDS Articulating Probe Holder Fully Tested
with 90 Day Warranty. Why pay retail prices when you can purchase with warranty from Metrology
Parts. Purchase with confidence from a Paypal verified retailer. If what you order is not what you receive
you will be refunded the full purchase price for this sale. Metrology Parts would like the opportunity to
earn your business for this sale and all of your future Renishaw needs. If you have any questions feel
free to contact us. With 36 plus years of experience with Renishaw products we can help with all of your
application needs as well as your after sales support.
