We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: PH6 TP2
MPN: A-1046-5097 A-1042-1890

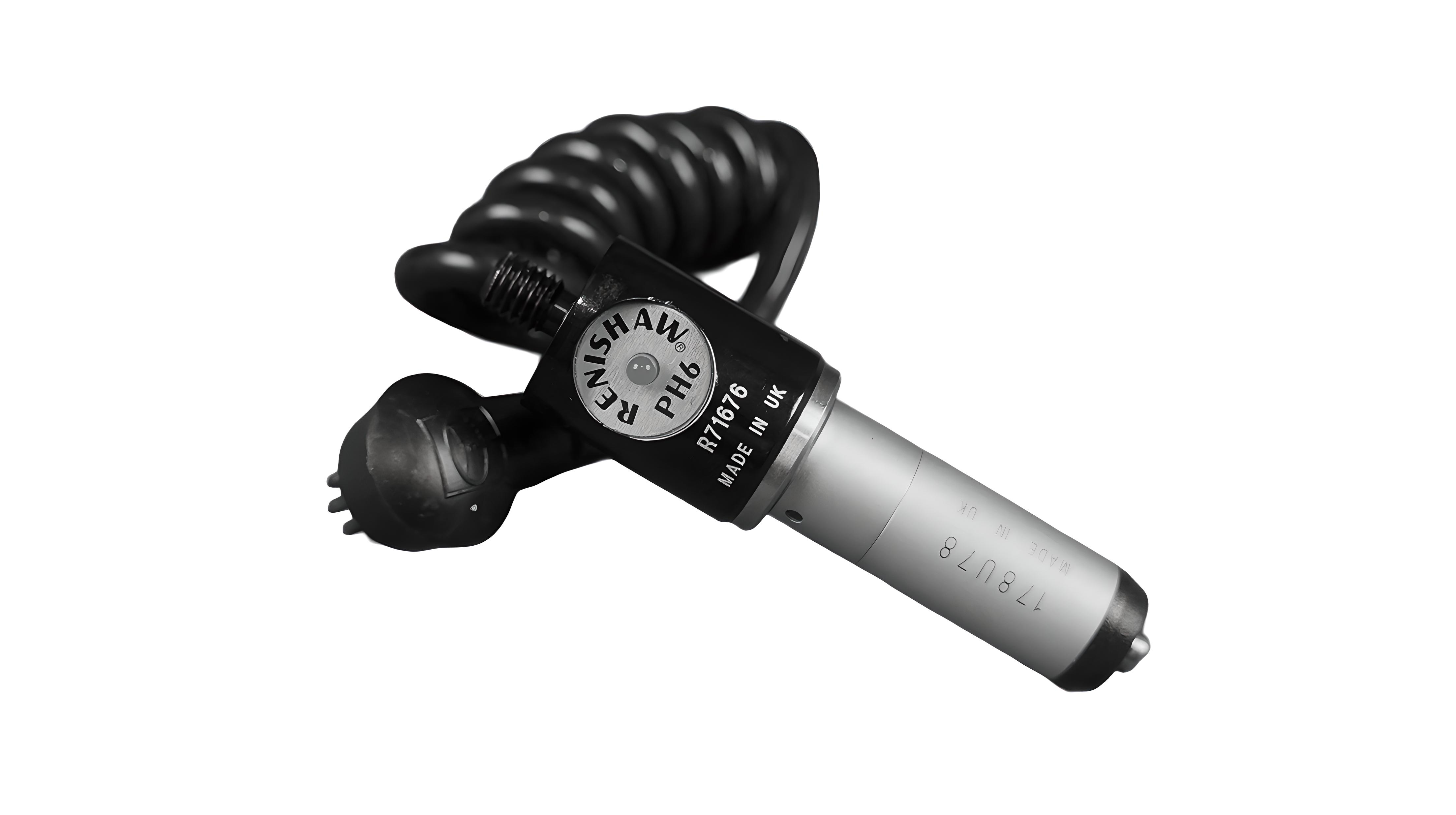

Renishaw PH6 CMM Video Measuring Probe Head, TP2 & 90° 5 PIN DIN Fully Tested with 90 Day Warranty.
Renishaw PH6 vertical probe head has a short curly cable with a 90° moulded plastic 5-pin DIN plug connector.
Used on the Following Machine:
MTI Corporation(UK)
A compact, vertical probe head with a mount for M8 thread probes
Vertical probe head
Compatible with M8 probes
Integral cable
| PH6 | |
| Head mounting | Shank to suit CMM (MS range) |
| Probe mounting | M8 thread |
| Probe status indication | 1 LED |
| Cable connection | Hard-wired 5-core cable |
| Weight | 48 g (1.69 oz) |
| Repeatability of position (2σ) | N/A |
| Suitable head interface | PI 200-3 |

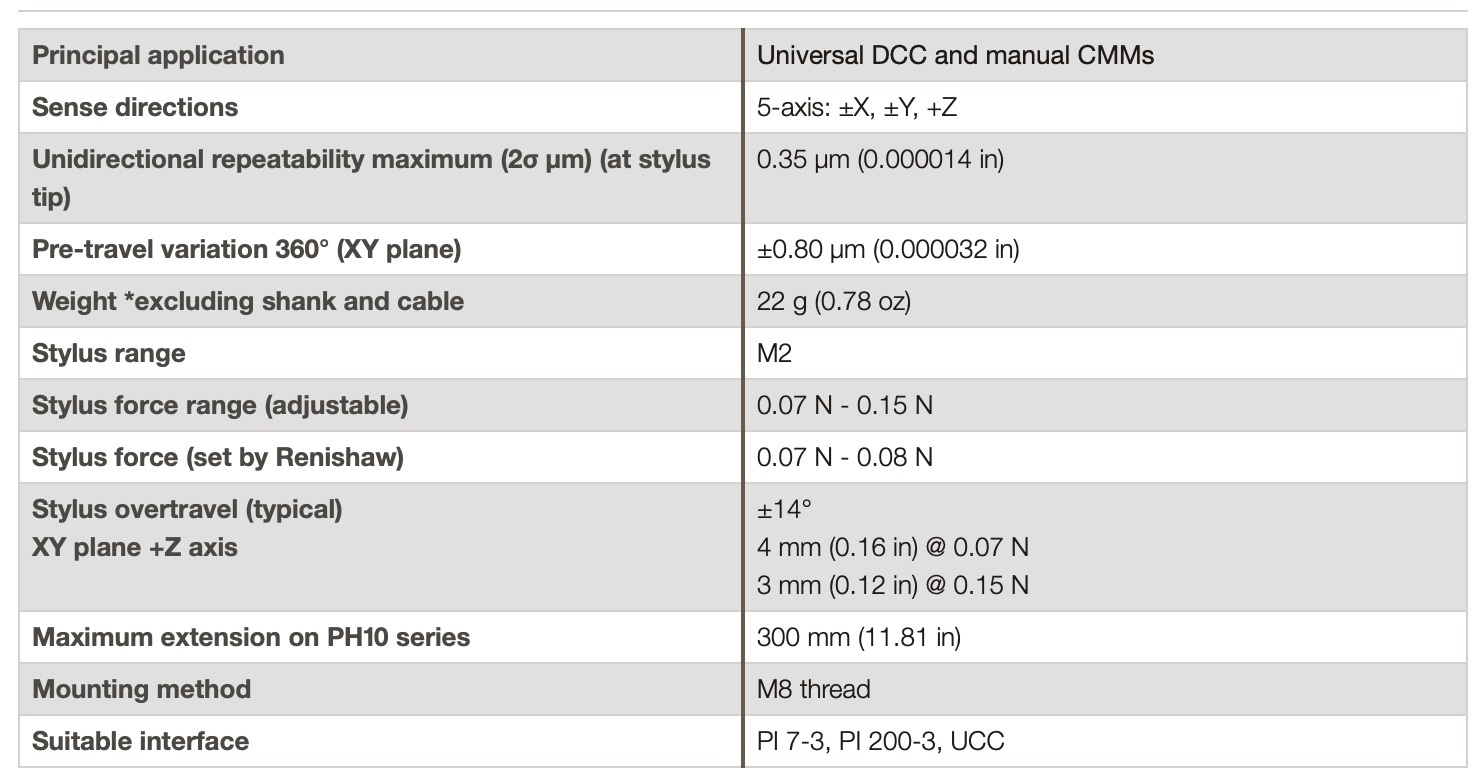

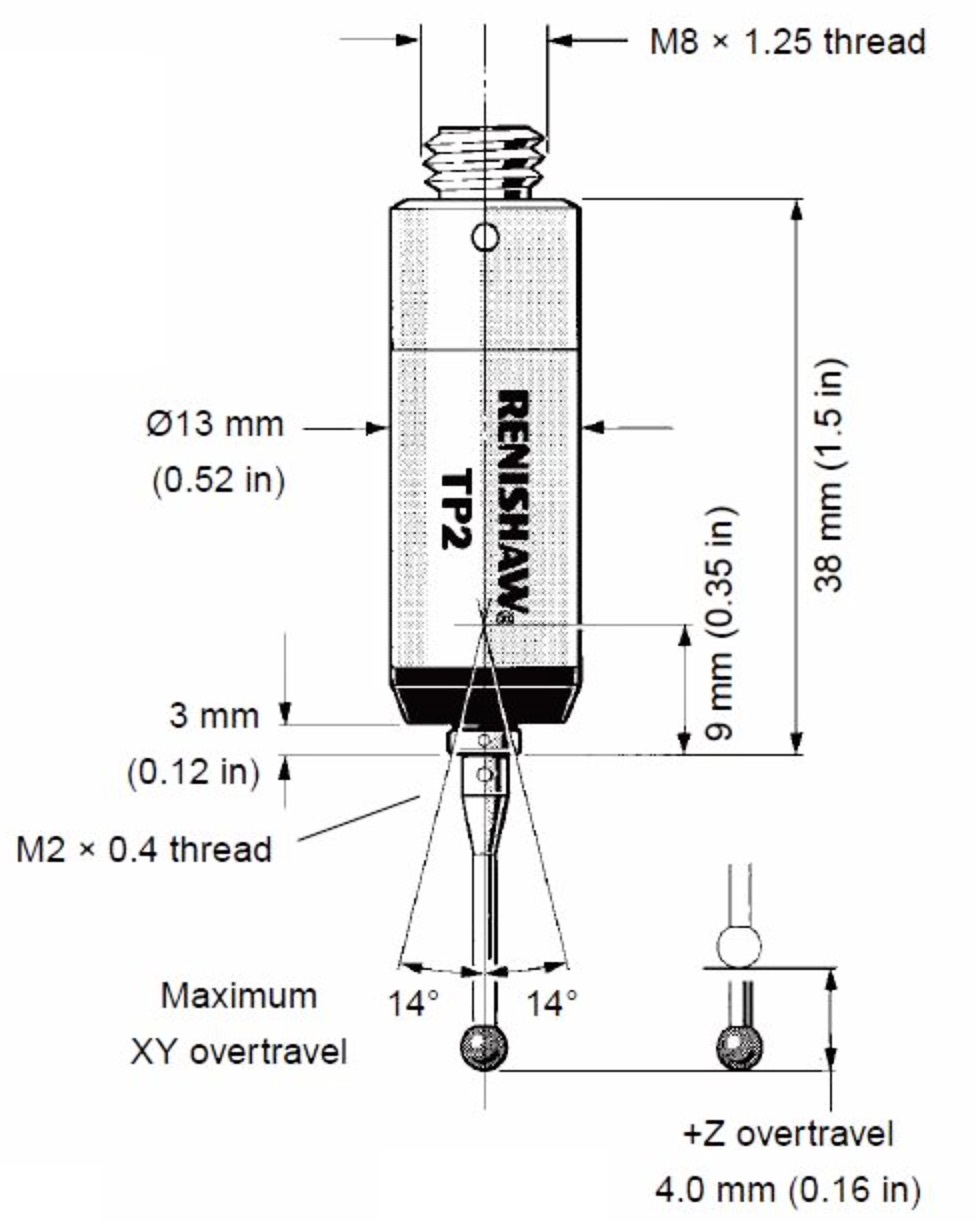

TP2 Dimensions & Specification
Above data applies to test conditions as follows:
Stylus length 10 mm (0.39 in)
Stylus velocity 480 mm/min (1.57 ft/min)
Stylus force 0.07 N - 0.08 N
This is by far the best price you will find on a Renishaw PH6 CMM Video Measuring Probe Head,
TP2 & 90° PIN DIN Connector Fully Tested with 90 Day Warranty. Why pay retail prices when you can
purchase with warranty from Metrology Parts. Purchase with confidence from a Paypal verified retailer.
If what you order is not what you receive you will be refunded the full purchase price of this sale.
Metrology Parts would like the opportunity to earn your business for this sale and all of your future
Renishaw product needs. If you have any questions feel free to contact us. With 36 plus years of
experience with Renishaw products we can help with all your application needs as well as your after
sales support.
