We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: PH10MQ
MPN: A-1036-0001
Item Description
About PH10 Models
The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features.
All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance.
All the heads in the range incorporate the following features:720 indexing positions
0.5 µm (2 s) indexing repeatability
7.5° indexing steps in both axes
300 mm extension bar capability
Additionally, the PH10M and PH10MQ heads offer the following features:
Autochange compatibility
Multiwired probe compatibility

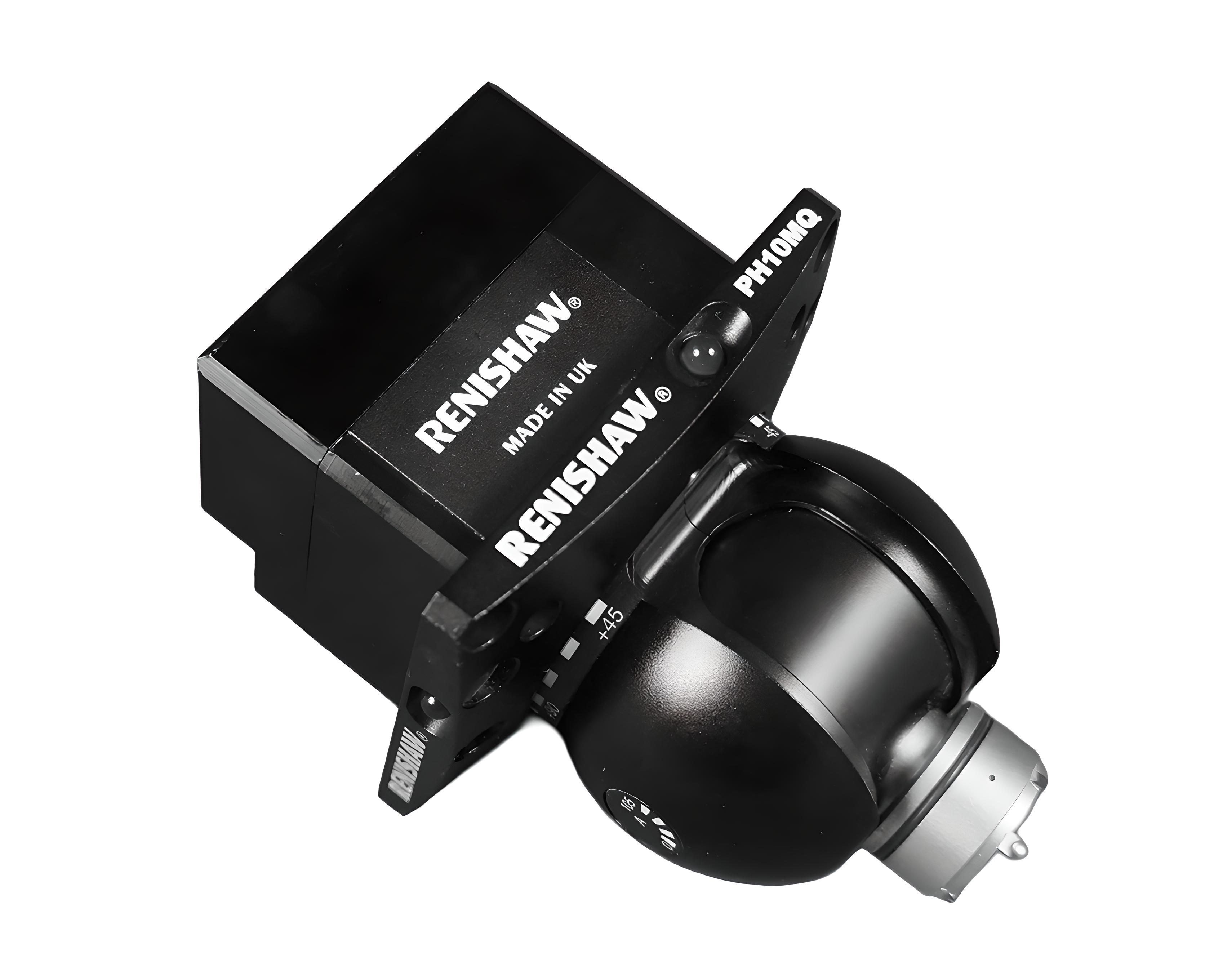

PH10MQ
The PH10MQ is a variant of the PH10M that allows the motorised head to be attached directly to the quill with the B axis of the head inside the quill itself. This option provides a neater and shorter probe mount, with only the A axis protruding from the quill.
PH10MQ Specification
| Length | 73 mm |
| Width | 80 mm |
| Weight | 730 g |
| Probe mounting | Autojoint (multiwire) |
| Head mounting | Direct to quill |
| Suitable controller | PHC10-2 |
| Repeatability of position | 0.4 µm (0.00002 in) specified at a distance of 62 mm |
| Total no. of positions | 720 |
| Max recommended drive torque | 0.45 Nm |
| Maximum extension bar | 300 mm (11.8 in) using PAA3 extension |
This is a great price for a Renishaw PH10MQ Motorized CMM Probe Head Fully Tested with
90 Day Warranty from Metrology Parts. Purchase with confidence from a verified Paypal
retailer. If what you order is not what you receive you will get a full refund for this sale.
Metrology Parts would like the opportunity to earn your business for this sale and all of your
future Renishaw needs. If you have any questions feel free to contact us. With 36 years of
experience with Renishaw products we can help with all your application needs as well as
after sales support.
