We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
* * * This PEM Extension is made by Renishaw when ordered not stocked * * *
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging
Country Of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: PEMCF3
MPN: A-1051-0491
Item Description

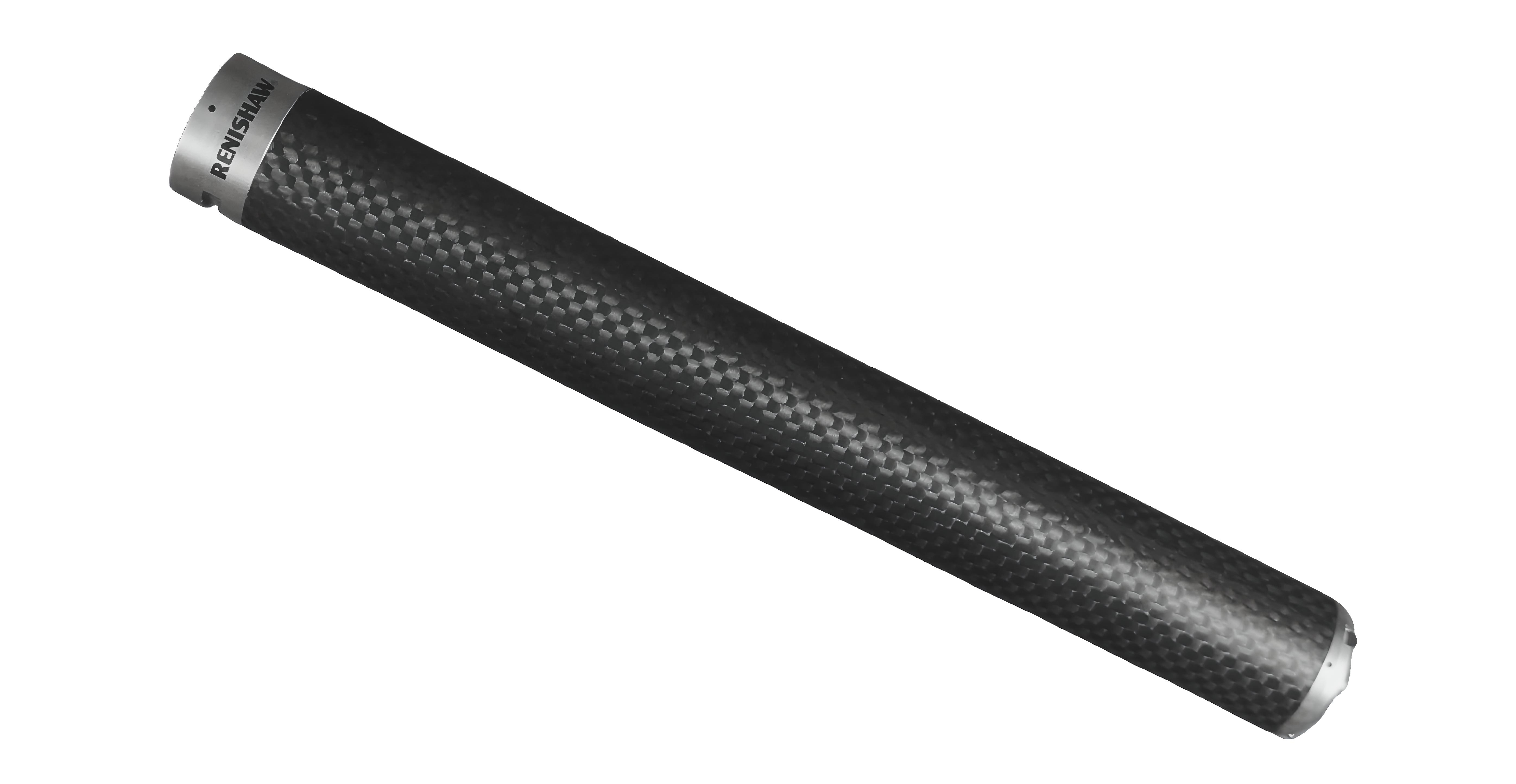

Renishaw PEMCF3 200mm Autojoint to Autojoint Probe Extension New with 1 Year Warranty.
Autojoint to Autojoint Extension Bars
Extend the reach of autojointed probes using multiwired extension bars. PEM extension bars are designed to be used with all multi-wired probes (TP7M, SP25M and SP600M scanning probes and the OTP6M optical probe) as well as other touch-trigger probes using an adaptor.
Autochange Extension Bars
A series of probe extensions placed between the probe and probe head to provide increased reach with minimal loss of accuracy. Autojoint extension bars have the female part of the Renishaw autojoint at one end of the bar, and at the other end of the bar is the probe connection mount. The male part of the autojoint is found on probe heads and allows rapid manual or automatic extension bar changing.
Autojoint extension bars are suitable for use with the ACR1 and ACR3 probe changing racks for automatic exchange of multi-probe installations. They can be fully multi-wired (all 13 pins connected) or feature just 2 wires. The probe end of the bar can feature either a male autojoint, or an M8 thread. PHS head adaptors have a different type of kinematic joint that allows the user to convert the PHS system to other probe types and include extension bars in the set-up.

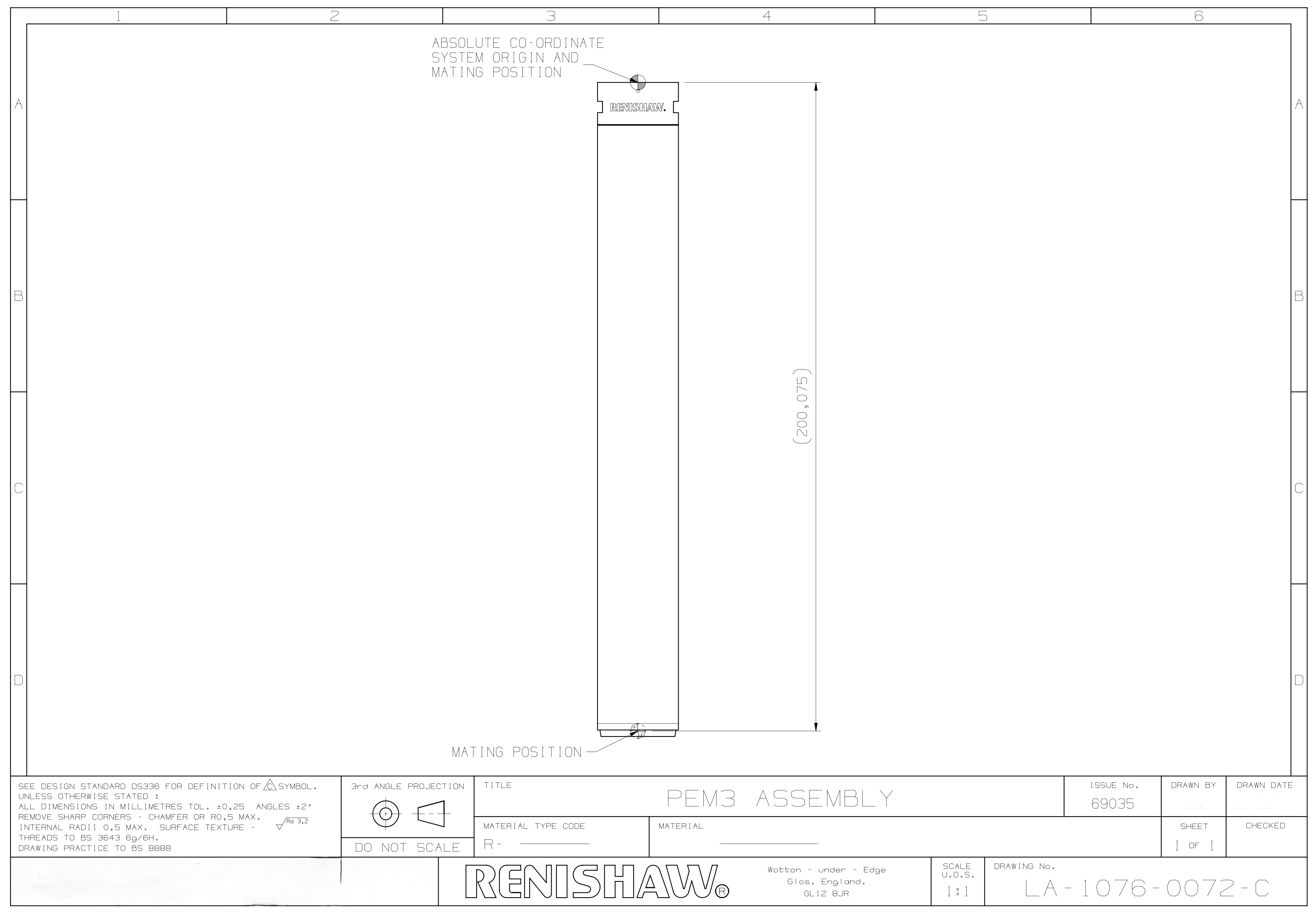

PEMCF3 Autojoint to Autojoint Technical Drawing
Autojoint to Autojoint
|
PEM25 |
PEM1 |
PEM2 |
PEM3 |
PEMCF1 (A-1051-0490) |
PEMCF2 (A-1051-0443) |
PEMCF3 (A-1051-0491) |
|
|
Material |
Steel |
Aluminium |
Aluminium |
Aluminium |
Carbon fibre |
Carbon fibre |
Carbon fibre |
|
Effective length |
25 mm (0.98 in) |
50 mm (1.97 in) |
100 mm (3.94 in) |
200 mm (7.87 in) |
52 mm (2.05 in) |
102 mm (4.02 in) |
202 mm (7.95 in) |
|
D1 |
Ø24.95 mm (0.98 in) |
Ø24.95 mm (0.98 in) |
Ø24.95 mm (0.98 in) |
Ø24.95 mm (0.98 in) |
Ø25 mm (0.98 in) |
Ø25 mm (0.98 in) |
Ø25 mm (0.98 in) |
|
D2 |
Ø24.95 mm (0.98 in) |
Ø24.95 mm (0.98 in) |
Ø24.95 mm (0.98 in) |
Ø24.95 mm (0.98 in) |
Ø25 mm (0.98 in) |
Ø25 mm (0.98 in) |
Ø25 mm (0.98 in) |
|
Weight |
60 g (2.11 oz) |
64 g (2.26 oz) |
93 g (3.66 oz) |
147 g (5.18 oz) |
60 g (2.11 oz) |
88 g (3.10 oz) |
129 g (4.55 oz) |
This is a great price for this Renishaw PEM3CF Extension Bar New with 1 Year Warranty.
Purchase with confidence from a Paypal verified retailer. If what you order is not what you receive you
will be refunded the full purchase price of this sale. Metrology Parts would like the opportunity to earn
your business for this sale and all of your future Renishaw needs. If you have any questions feel free to
contact us. With 36 plus years of experience with Renishaw products we can help with all of your
application needs as well as your after sales support.
