Item Description
Renishaw NCi-5 Non-Contact Tool Setting Interface New with 1 Year Warranty.

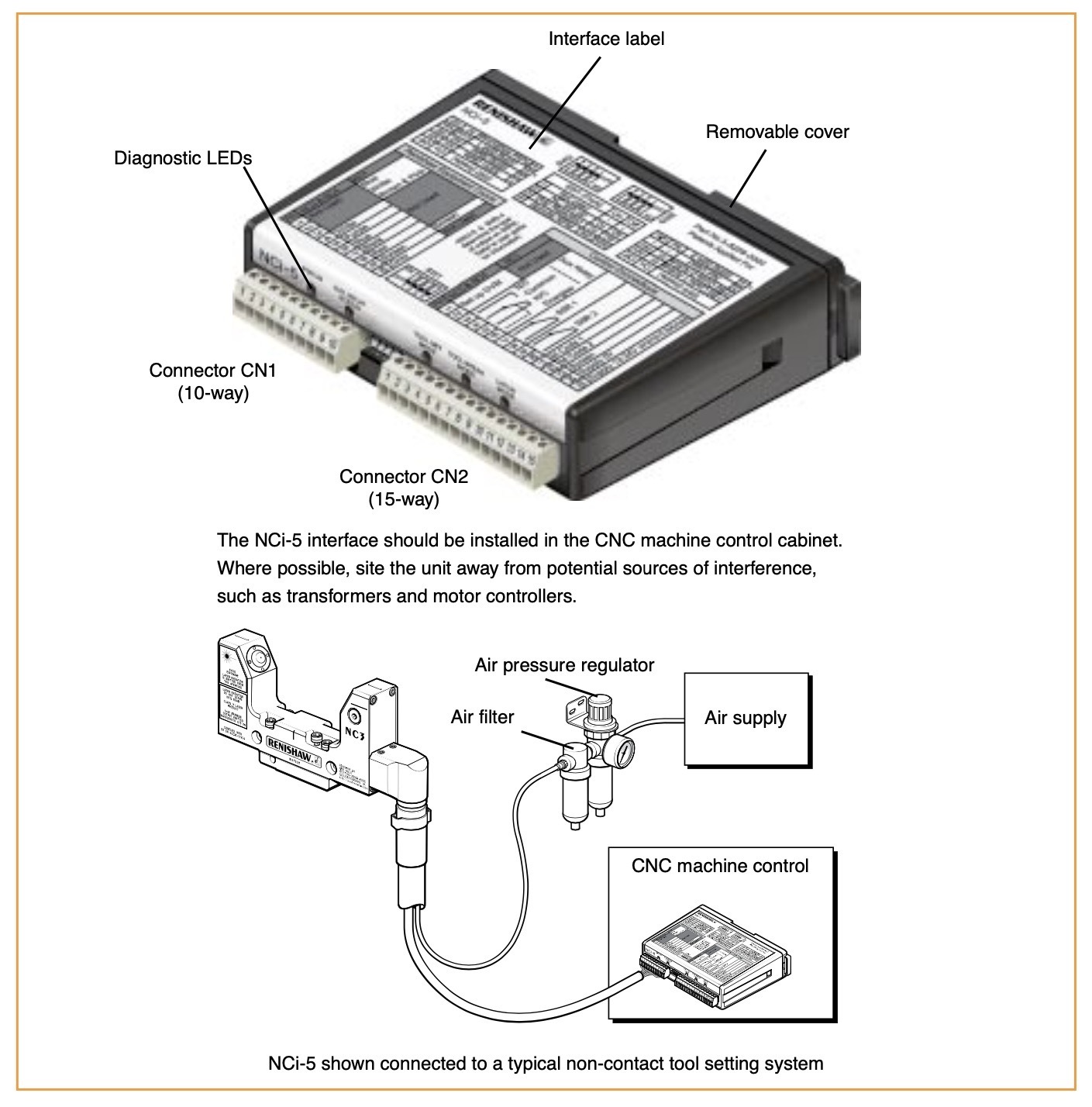

NCi-5 Interface System
The NCi-5 interface is used with Renishaw’s NC1, NC3 or NC4 non-contact tool setting systems. It processes signals from the non-contact unit and converts them into voltage-free solid state relay (SSR) outputs, for transmission to the CNC machine control. The NCi-5 features a drip rejection mode allowing it to filter out random drops of coolant without triggering the system.
Introduction
CNC machine tools using Renishaw NC1, NC3 or NC4 non-contact (NC) systems for tool setting or broken tool detection require an interface unit. The NCi-5 unit converts signals from the NC unit into voltage-free, solid state relay (SSR) outputs for transmission to the CNC machine control.
The NCi-5 interface unit should be installed in the CNC control cabinet. Where possible, site the unit away from potential sources of interference such as transformers and motor controllers.
Only qualified persons should install and adjust switches on the interface. Remove the mains supply from the NCi-5 unit before removing the cover.
Power Supply
The NCi-5 interface can draw its power from the CNC machine’s nominal 12 Vdc to 24 Vdc supply. This must be an appropriate single fault tolerant power supply which must comply to IEC 60950.
The supply to the NCi-5 is protected by a 0.5 A resettable fuse. To reset the fuse, remove the
power then identify and rectify the cause of the fault.
The nominal current when connected to an NC unit is as follows:
NC1 300 mA @ 12Vdc, 130 mA @ 24Vdc
NC3 120 mA @ 12Vdc, 70 mA @ 24Vdc or NC4

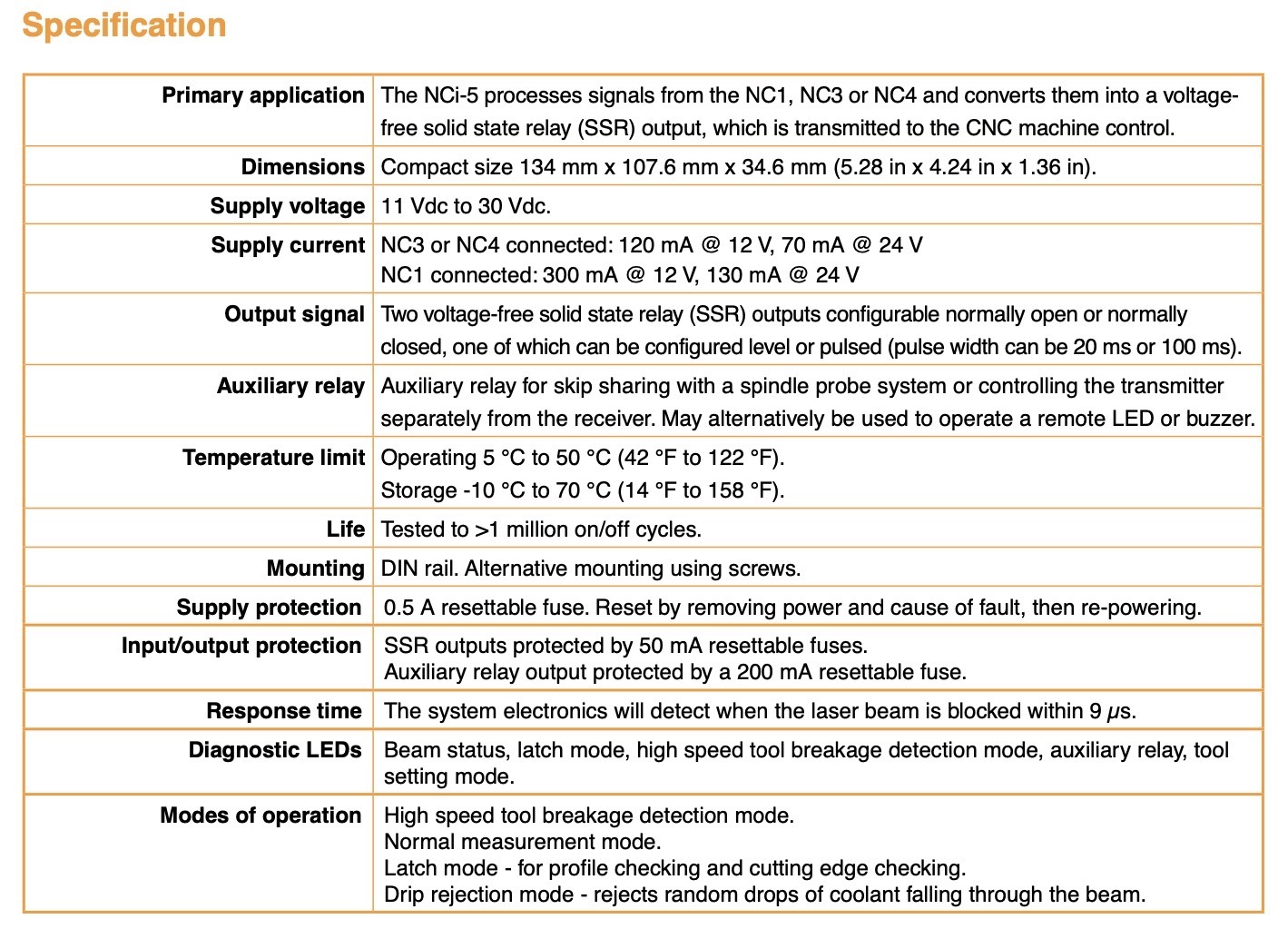

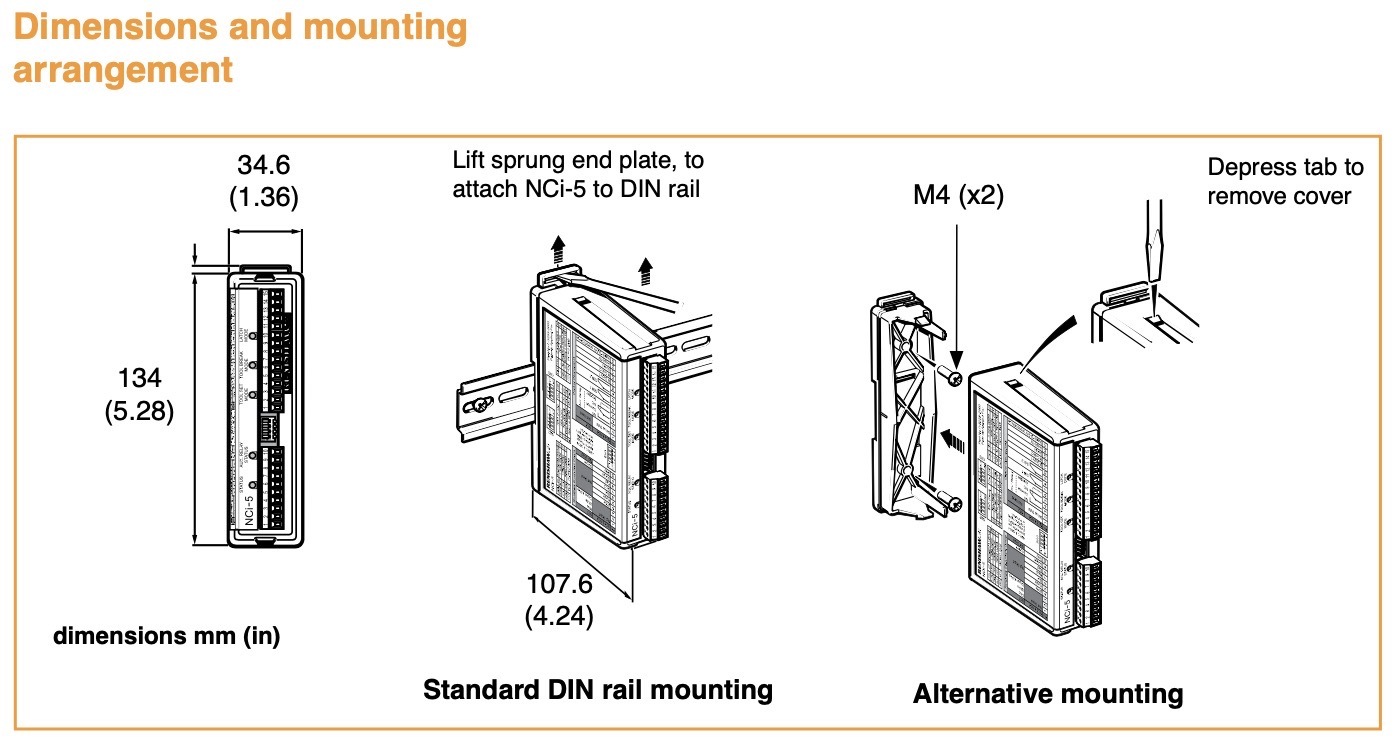

NCi-5 Interface Dimensions & Specification

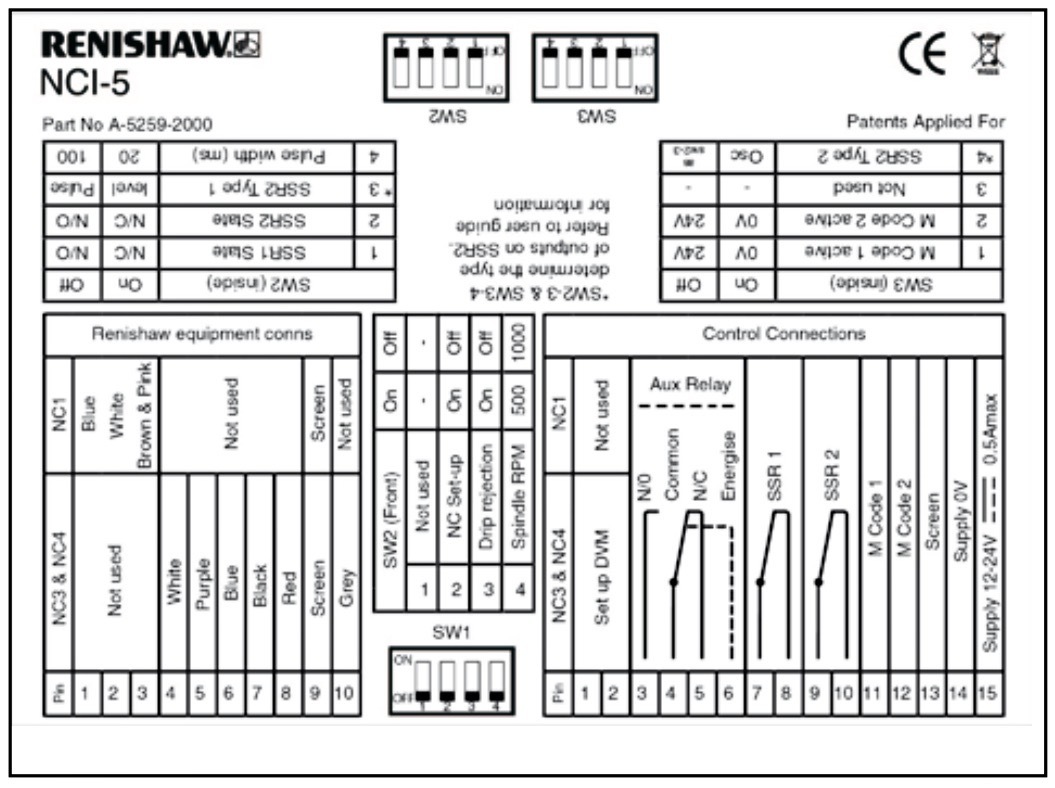

NCi-5 Interface Label
