We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging
Country Of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: TOOL DATUMING STYLI
MPN: A-2197-0160

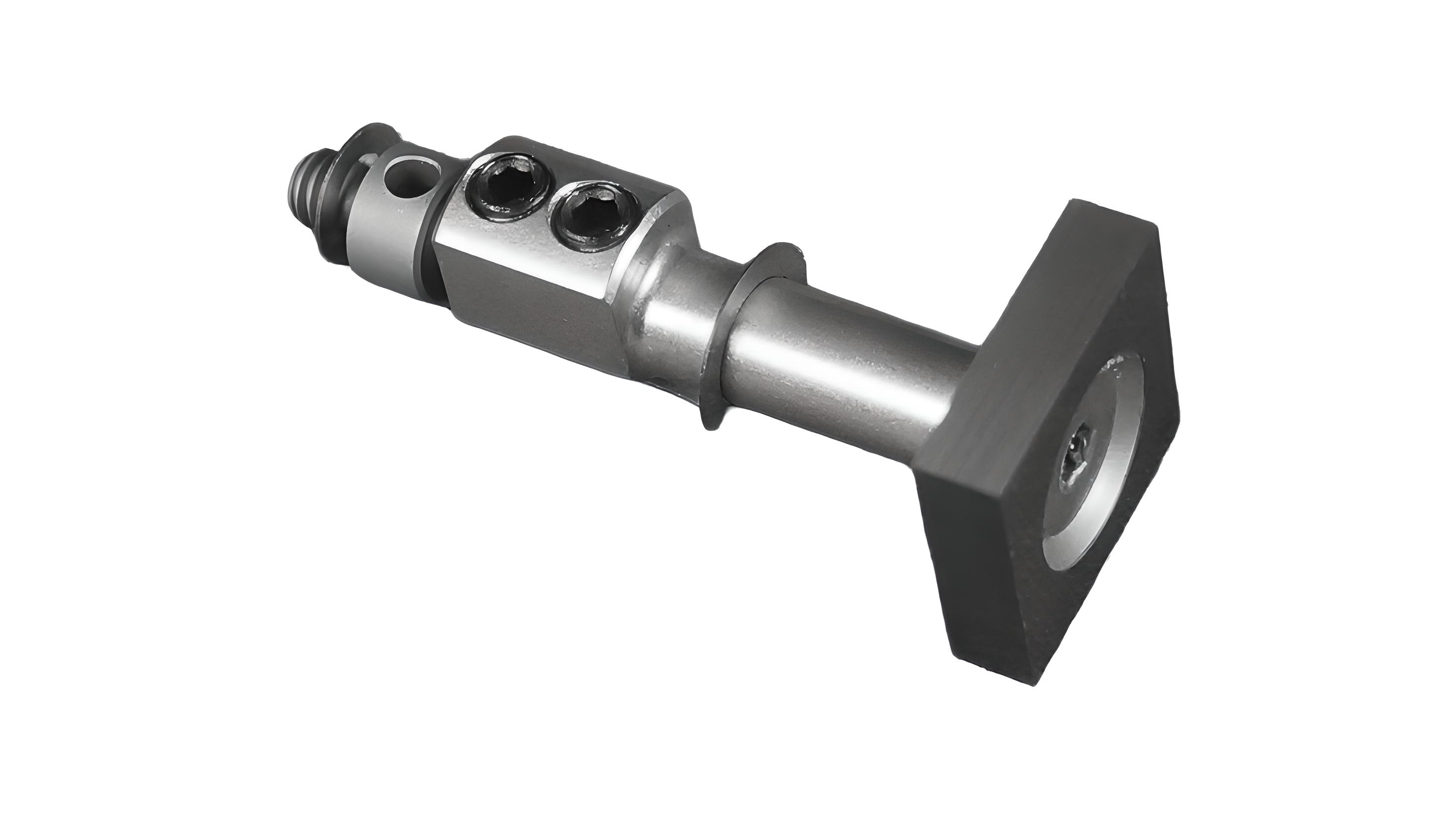

Renishaw M4 Tool Datum Block, Tungsten Carbide, L 34.5 mm New - 1 Year Warranty.
Tool setting styli are fitted with a precision ground tip to ensure high squareness and parallelism.
| Chamfer | N |
|---|---|
| Diameter mount (mm) | 0 |
| Dimension A (mm) | 15 |
| Dimension B (mm) | 15 |
| Dimension C (mm) | 4 |
| Length (mm) | 34.5 |
| Number of faces | 4 |
| Offset (mm) | 0 |
| Overall length (mm) | 34.5 |
| Stem material | Stainless steel |
| Thread | M4 |
| Tip material | Tungsten carbide |
Specification
This is by far the best price you will find on this Renishaw M4 Tool Datum Block, Tungsten
Carbide, L 34.5 mm New 1 Year Warranty. Purchase with confidence from a Paypal verified
retailer. If what you order is not what you receive you will be refunded the full purchase price
of this sale. Metrology Parts would like the opportunity to earn your business for this sale and
all of your future Renishaw needs. If you have any questions feel free to contact us. With 36
plus years of experience with Renishaw products we can help with all of your application
needs as well as your after sales support.
