We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: HPRA REAR EXIT
MPN: A-2176-0025
Item Description

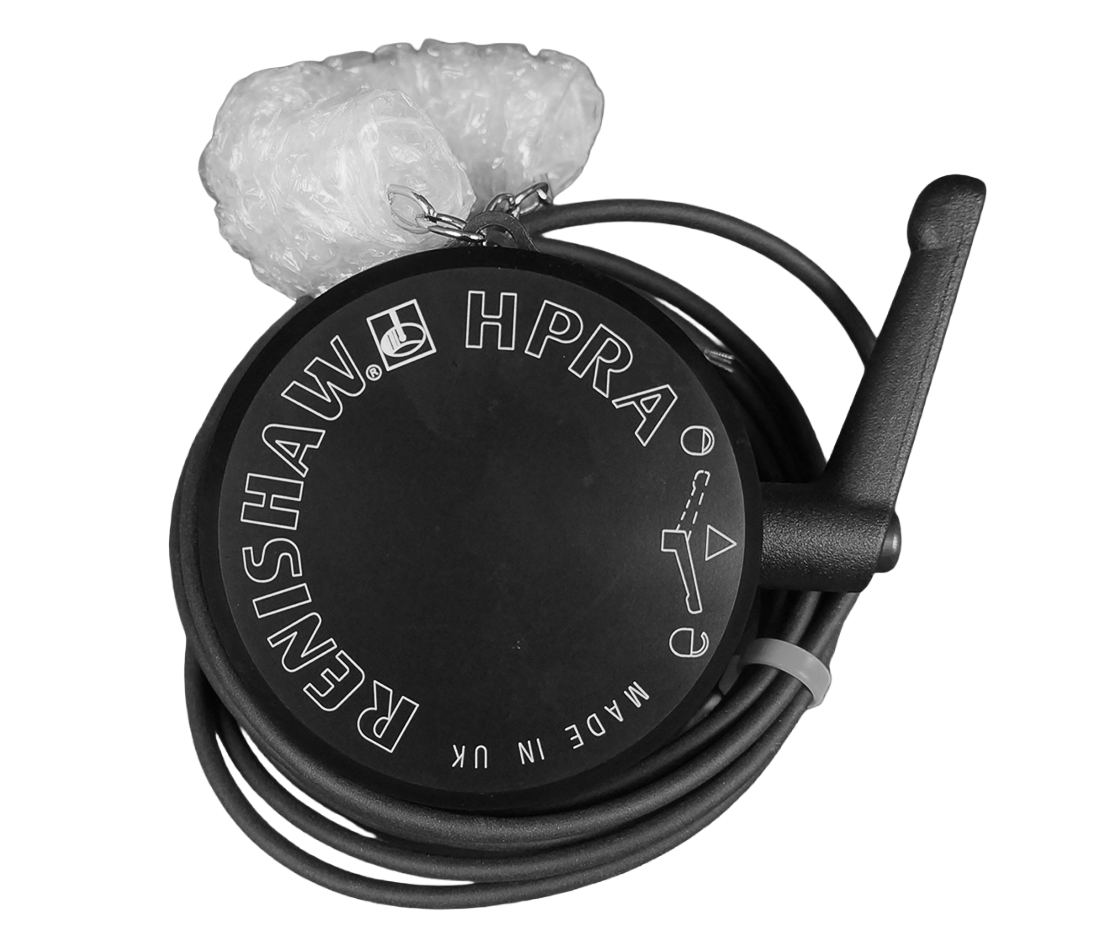

Renishaw HPRA Rear Exit Base/Cover Assembly - New with 1 Year Warranty.
HPRA Bases
The HPRA base is designed to provide a repeatable location for fixing the HPRA arm during tool setting cycles. The base is designed to stay resident within the machine and is supplied with a cover to protect the unit from coolant and debris when the arm is not in use. HPRA bases are available in rear and side exit configurations and are supplied with 3 m or cable.

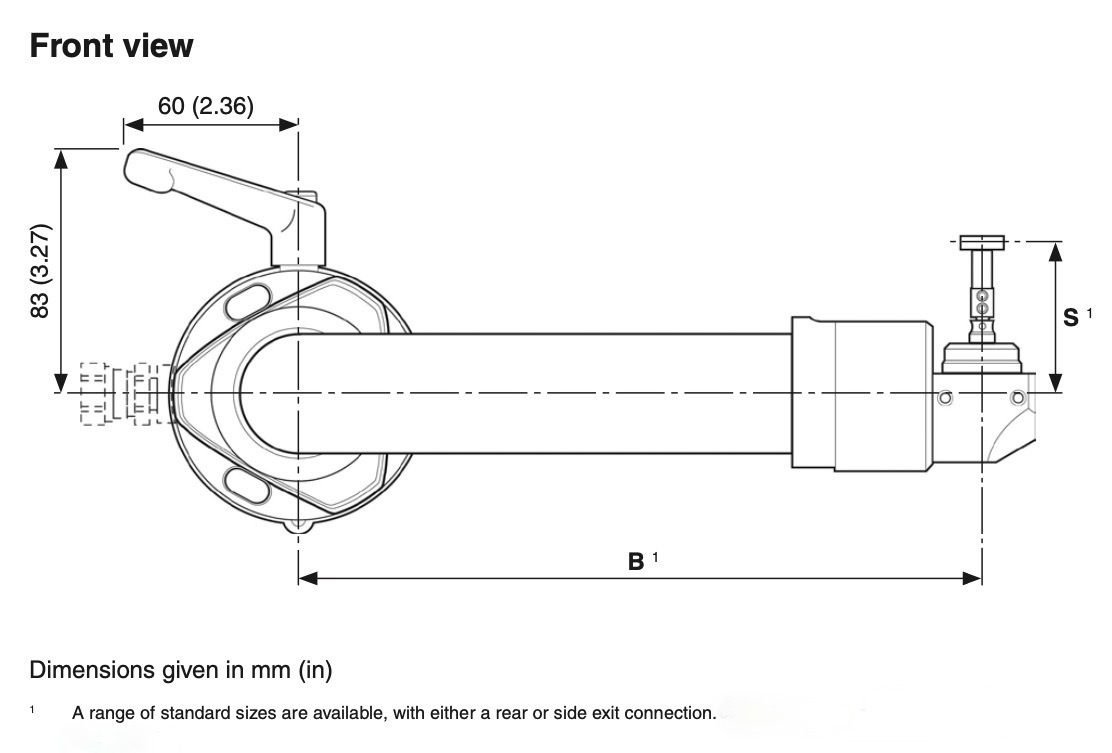

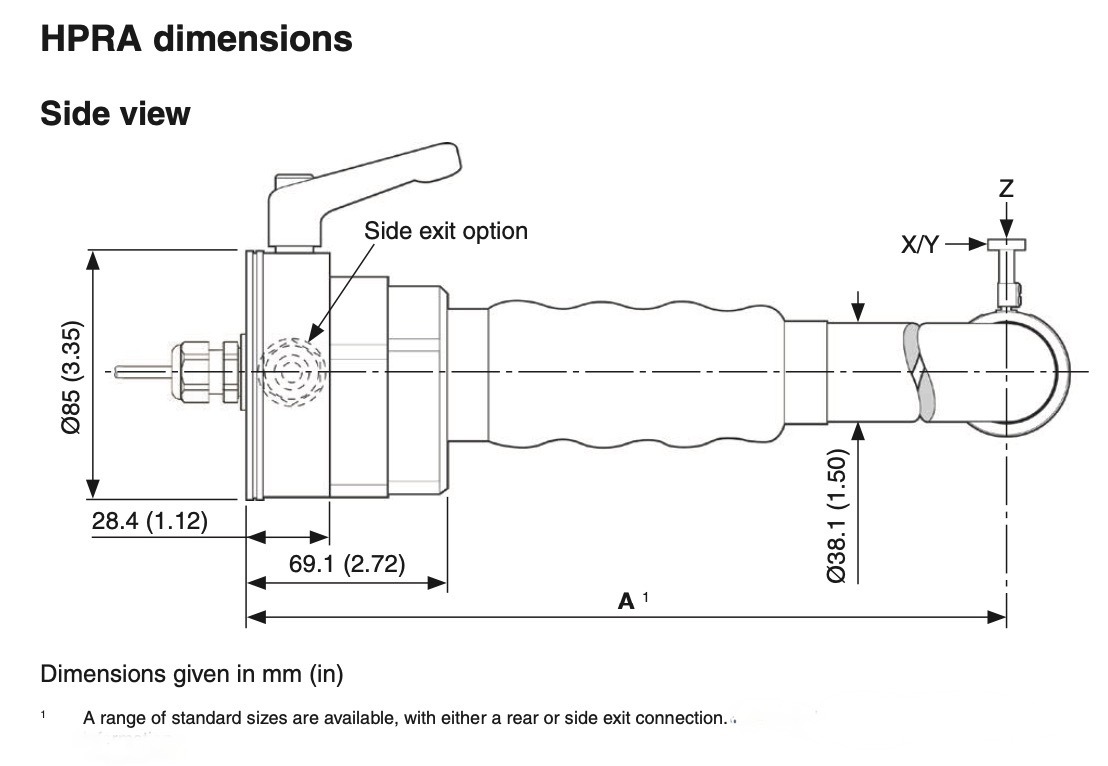

HPRA Dimensions

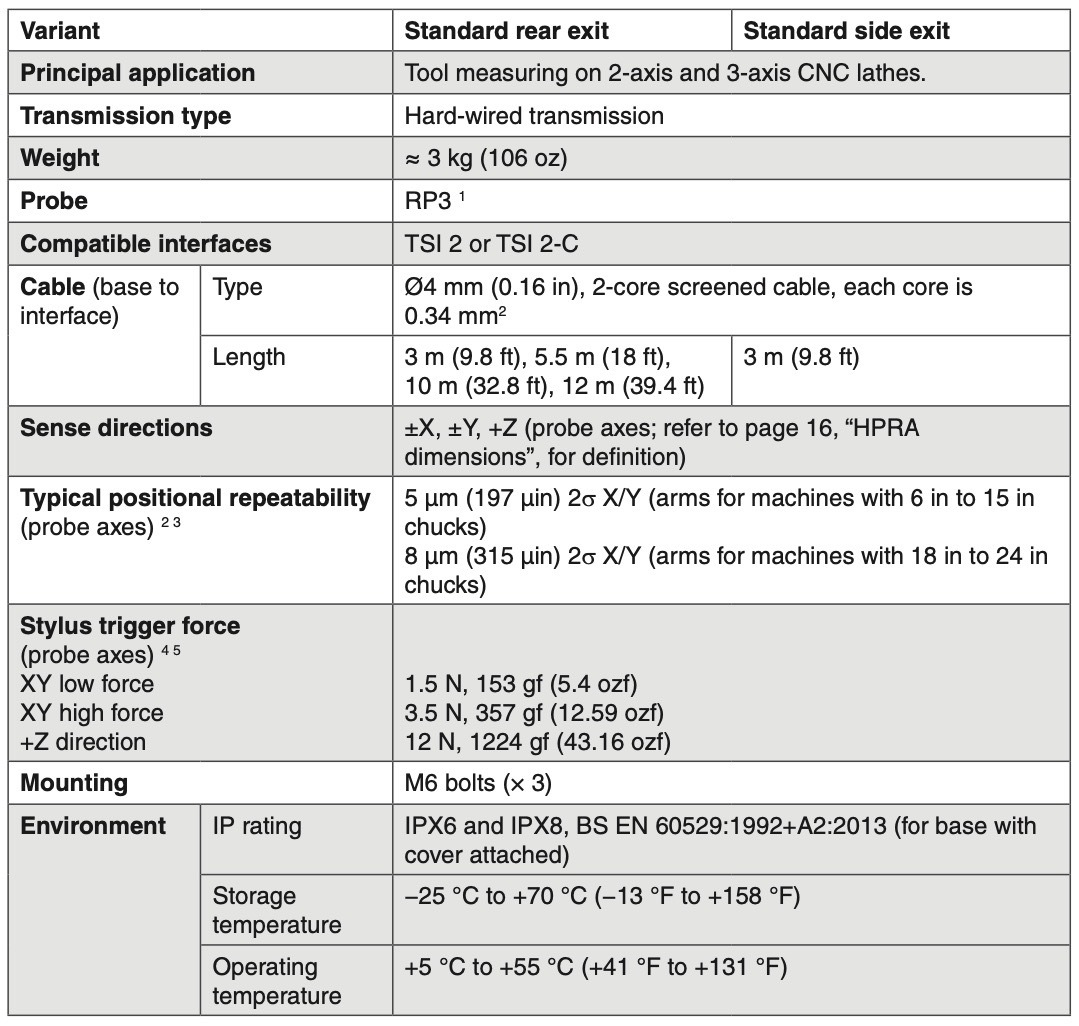

HPRA Specification
Where the RP3 is to be used in the probe’s Z axis (typically the CNC lathe Y axis), a five-faced stylus is available to order from the Renishaw Online store at www.renishaw.com/shop.
Test conditions: Stylus length: 22 mm (0.87 in)
Stylus velocity: 36 mm/min (1.42 in/min)
Repeatability performance is not specified in the probe Z axis. Refer to page 16, “HPRA dimensions”, to identify this axis.
Trigger force, which is critical in some applications, is the force exerted on the stylus by the tool when the probe triggers. The maximum force applied will occur after the trigger point (overtravel). The force value depends on related variables including measuring speed and machine deceleration.
These are the factory settings; manual adjustment is not possible.
This is by far the best price you will find for a Renishaw HPRA Rear Exit Base/Cover Assembly New
with 1 Year Warranty. Purchase with confidence from a Paypal verified retailer. If what you order is not
what you receive you will be refunded the full purchase price for this sale. Metrology Parts would like
the opportunity to earn your business for this sale and all of your future Renishaw product needs. If
you have any questions feel free to contact us. With 36 plus years of experience with Renishaw products
we can help with all of your application needs as well as your after sales support.
