We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: DATUM SPHERE 25 MM
MPN: A-1034-0026 A-1034-0351
Item Description
Renishaw 25 mm Datum Sphere Calibration Standard, Adjustable Stand, M8 Thread Stud Fully Tested with 90 Day Warranty.
Datum Sphere
A range of spheres for probe qualification, mounted on a stem that can be adjusted for a wide range of qualification angles.
The Renishaw universal datum sphere enhances the performance of manual and fully automated co-ordinate measuring machines.
Hard Wearing Tungsten Carbide Sphere (Ball) Available in Five Sizes:

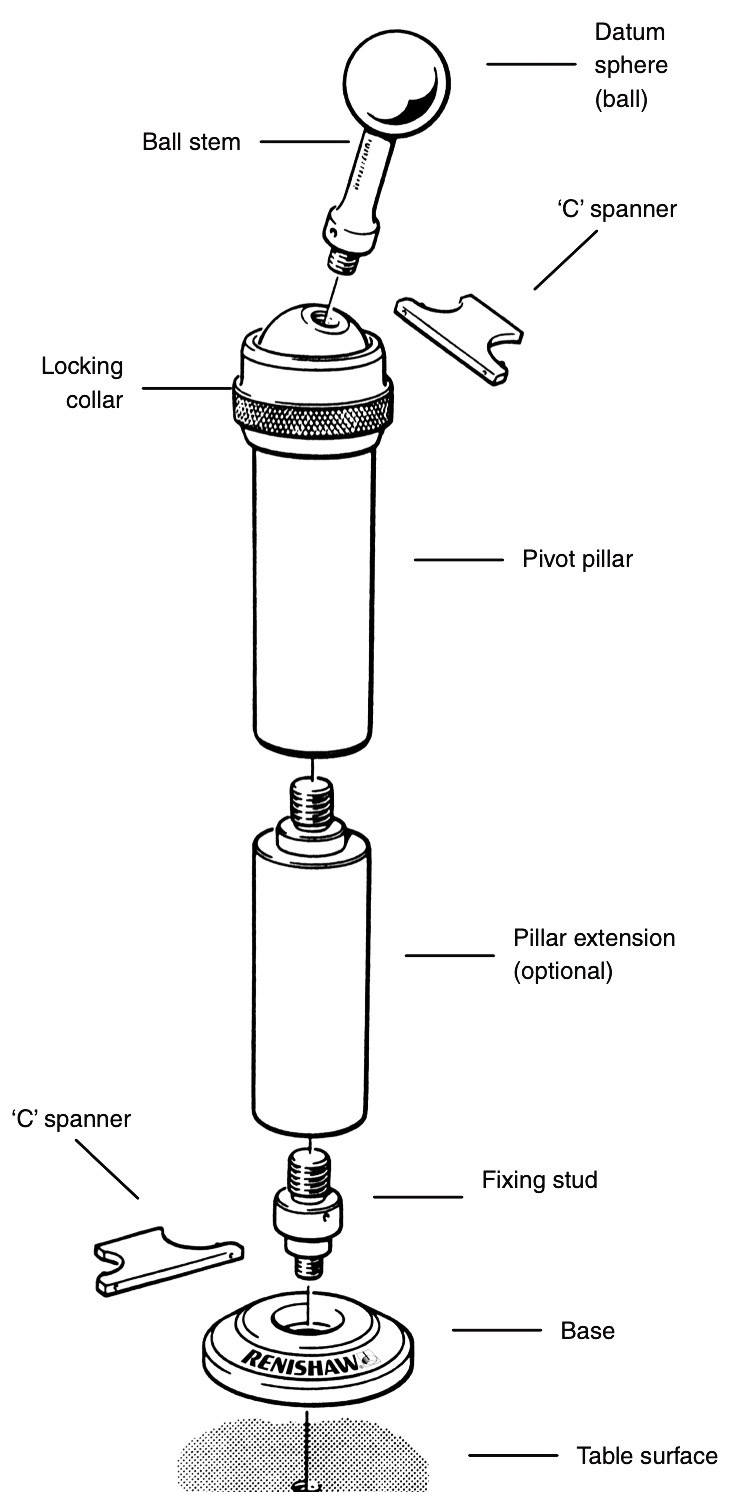

* Ball Stem * Locking Collar * Datum Sphere (ball) * ‘C’ Spanner * Pivot Pillar * Pillar Extension (optional)
* Fixing Stud * Base * Table Surface * Metric * Inch * Sphericity * Diametric Tolerance * Ø12 mm, Ø19 mm
and Ø25 mm Ø3/4 in and Ø1 in * Grade 5 ≤ 0.13 μm (0.000 005 in) Grade 3 ≤0.08 μm(0.000 003 in)
±1 μm (0.000 04 in * Adaptor available for twin ball and tri-ball applications (optional). *

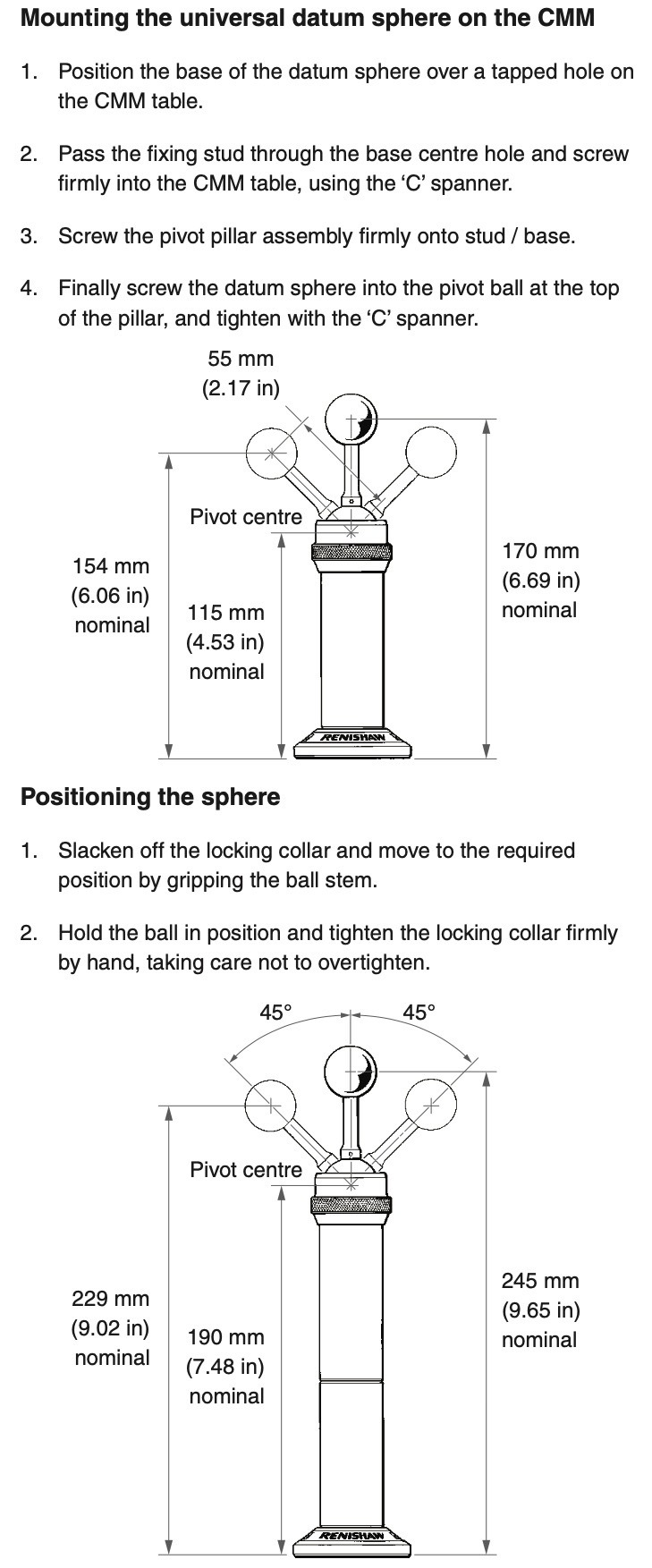

Quick and easy adjustment to set ball stem over a wide range of probe datuming angles. This enables datuming above, centrally and below the ball. The hand adjustable pivot joint enables stem rotation through 360° in the horizontal plane, and ±45° in the vertical plane.
A vertical positioning feature provides positive feel when the stem arrives in vertical position.
Vertical height from table to centre of all standard ball sizes is approximately 170 mm (6.69 in). An optional pillar extension increases height to 245 mm (9.65 in).
A fixing stud is required with each kit to attach the pillar to the table surface.
M8 threaded inserts used to mount Renishaw datum sphere kits to the CMM bed. This product is specifically designed to fit the Renishaw datum ball base. Previous part number: M-1034-0015
Technical Table
| Length (mm) | 40 |
|---|---|
| Thread | M8 |
This is by far the best price you will find for a Renishaw 25 mm Datum Sphere Calibration Standard,
Adjustable stand, Mounting Stud Fully Tested with 90 Day Warranty. Purchase with confidence from a
Paypal verified retailer. If what you order is not what you receive you will be refunded the full purchase
price for this sale. Metrology Parts would like the opportunity to earn your business for this sale and all
of your future Renishaw product needs. If you have any questions feel free to contact us. With 36 plus
years of experience with Renishaw products we can help with all of your application needs as well as
your after sales support.
