Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: M2 TUNGSTEN STEM RUBY BALL
MPN: A-5003-0044

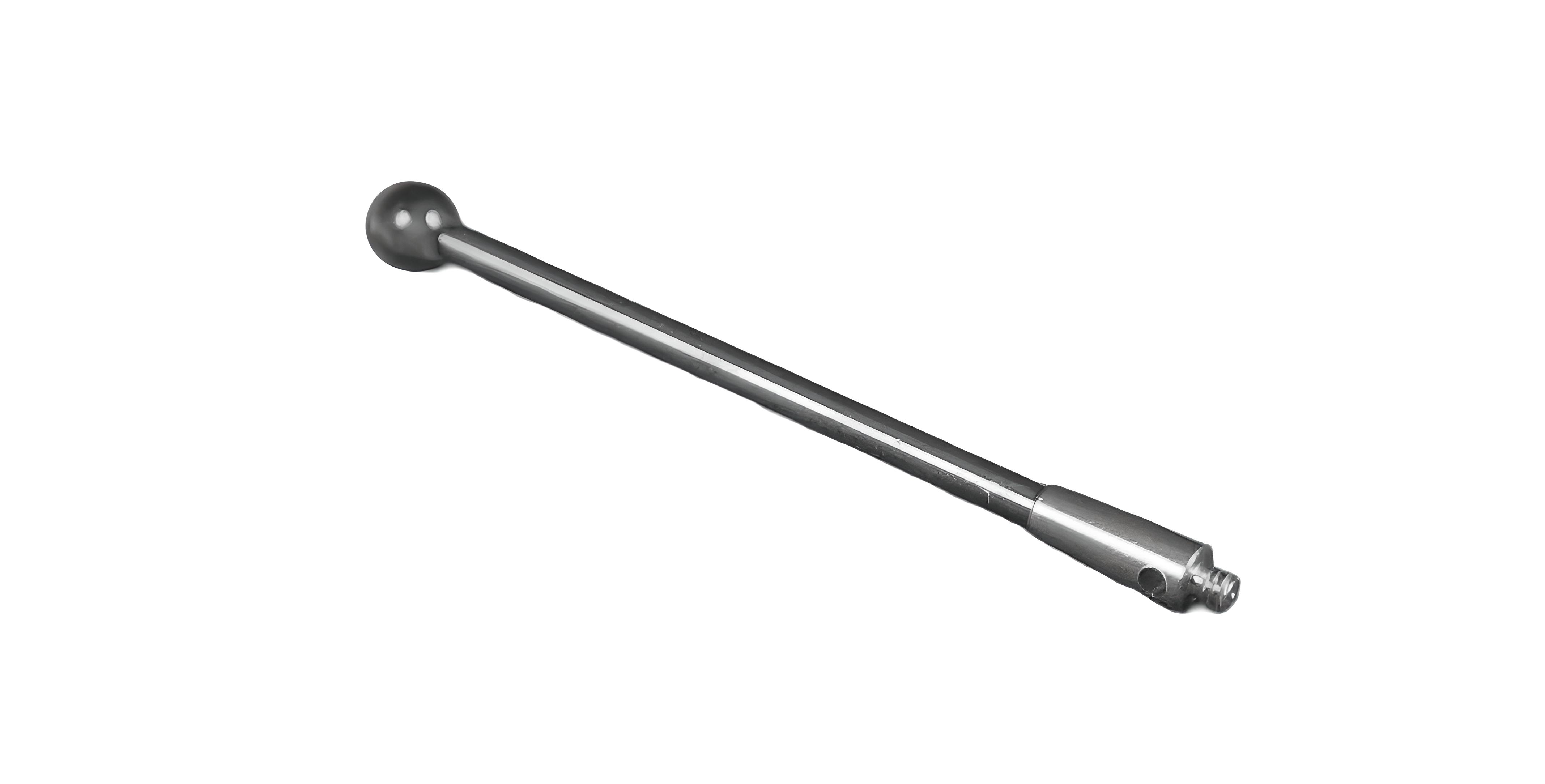

2 QTY: Renishaw M2 Ø4 mm Ruby Ball, Tungsten Carbide Stem, L 40 mm, EWL 40 mm Styli New 1 Year Warranty.
Straight Styli
Are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A tungsten carbide stem provides exceptional rigidity, particularly for styli with small ball and stem diameters. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts. Equivalent to Mitutoyo part number: K651266. Equivalent to Q-Mark part number: TM2-4042.
Technical Table
| Ball diameter (mm) | 4 |
|---|---|
| Centre styli | N |
| EWL (mm) | 40 |
| Holder material | Stainless steel |
| Overall length (mm) | 40 |
| Stem diameter (mm) | 2 |
| Stem material | Tungsten |
| Thread | M2 |
| Tip material | Ruby |

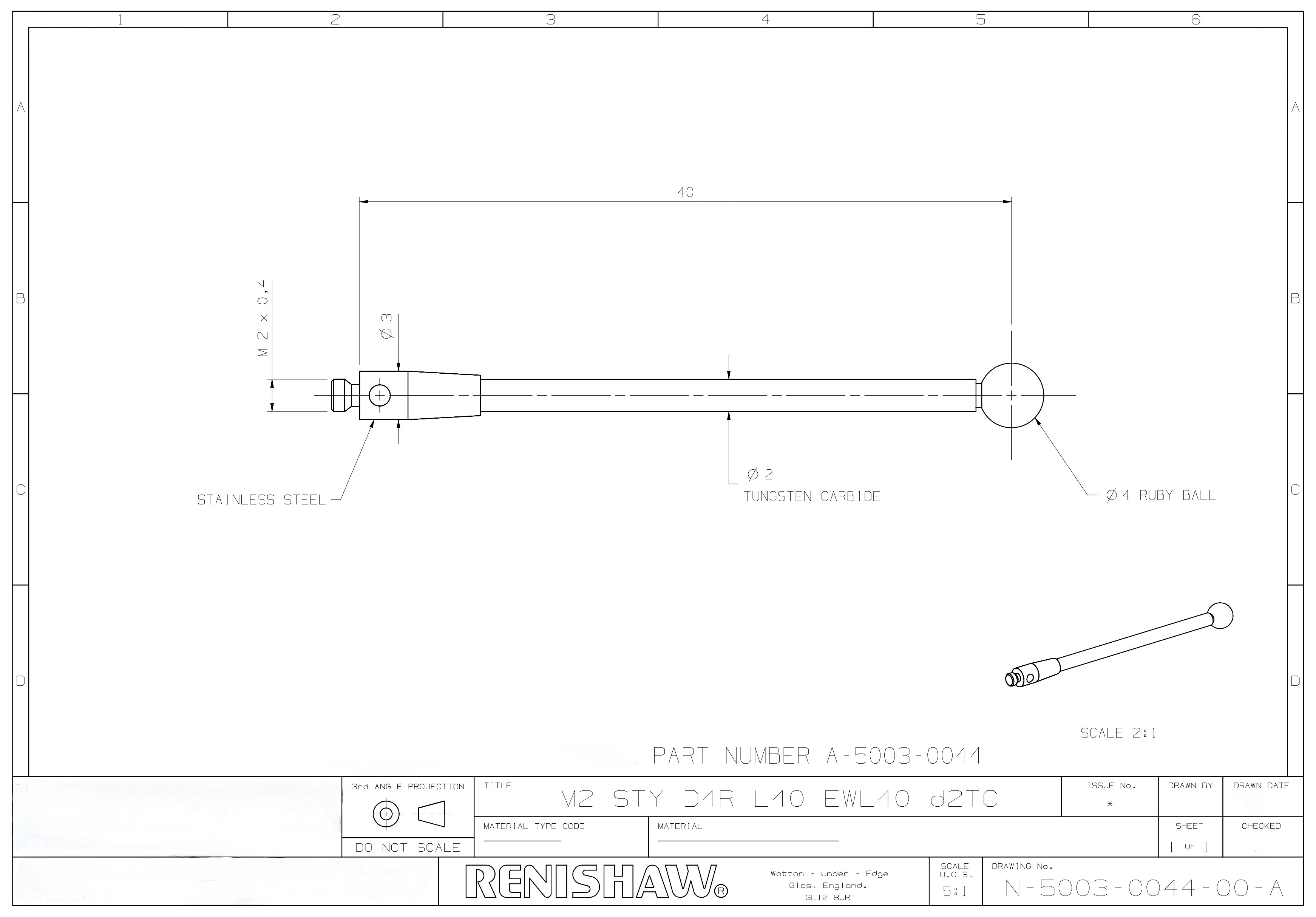

A-5003-0044 Technical Drawing
