We offer a great selection of Renishaw Products. We also focus on products related to CMMs as well as Vision Systems like Ram Optical and OGP. We thank you for the opportunity to earn your business and strive for your 100% satisfaction.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging.
Country of Manufacture: UNITED KINGDOM
Brand: RENISHAW
Model: M2 CERAMIC STEM RUBY BALL
MPN: A-5003-1370

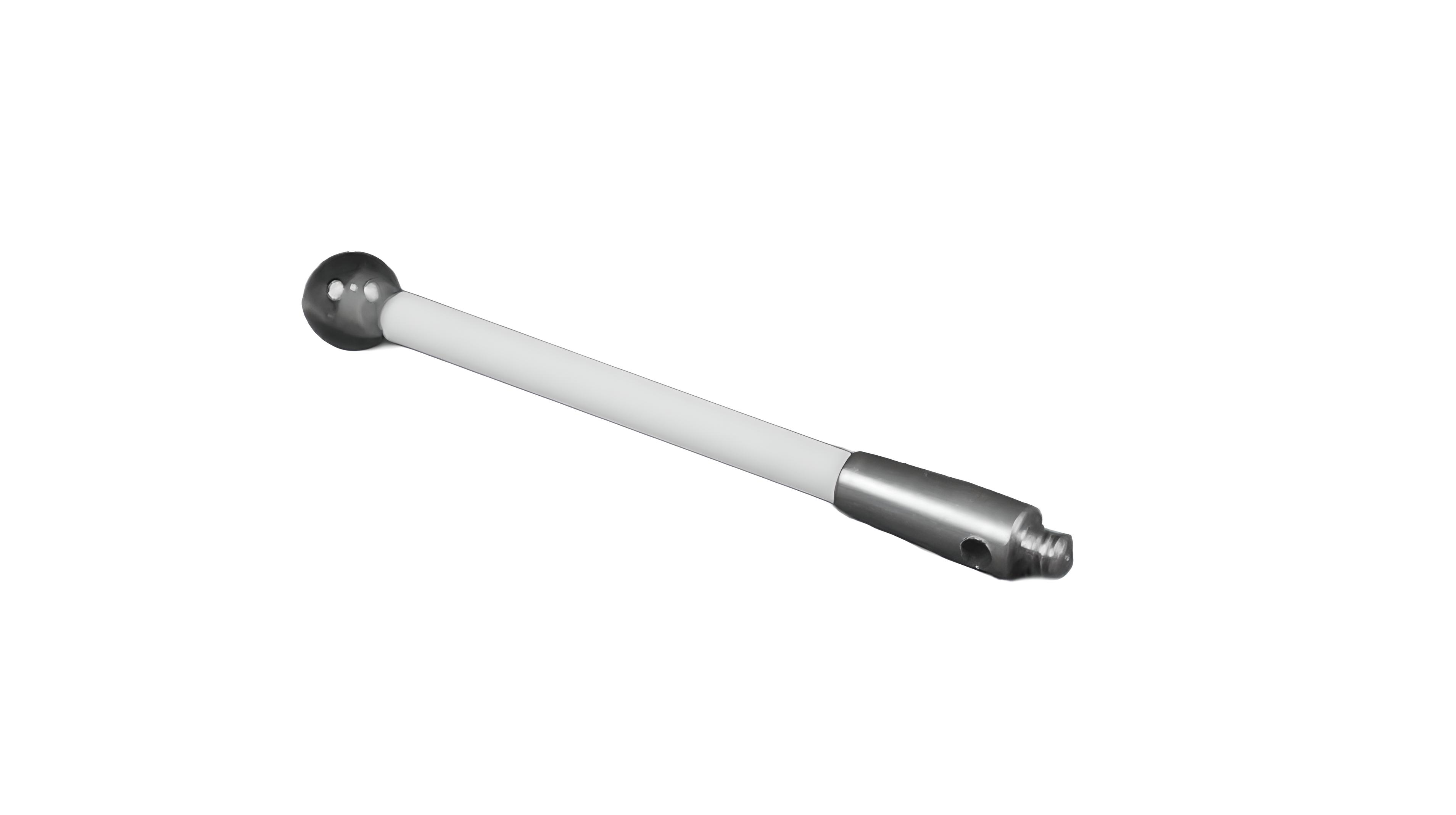

2 QTY: Renishaw M2 Ø4 mm Ruby Ball, Ceramic Stem, L 30 mm, EWL 30 mm Styli New 1 Year Warranty.
Straight Styli
Are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A tungsten carbide stem provides exceptional rigidity, particularly for styli with small ball and stem diameters. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts. Equivalent to Mitutoyo part number: K651006. Equivalent to Q-Mark part number: TM2-4032-C.
Technical Table
| Ball diameter (mm) | 4 |
|---|---|
| Centre styli | N |
| EWL (mm) | 30 |
| Holder material | Stainless steel |
| Overall length (mm) | 30 |
| Stem diameter (mm) | 2 |
| Stem material | Ceramic |
| Thread | M2 |
| Tip material | Ruby |

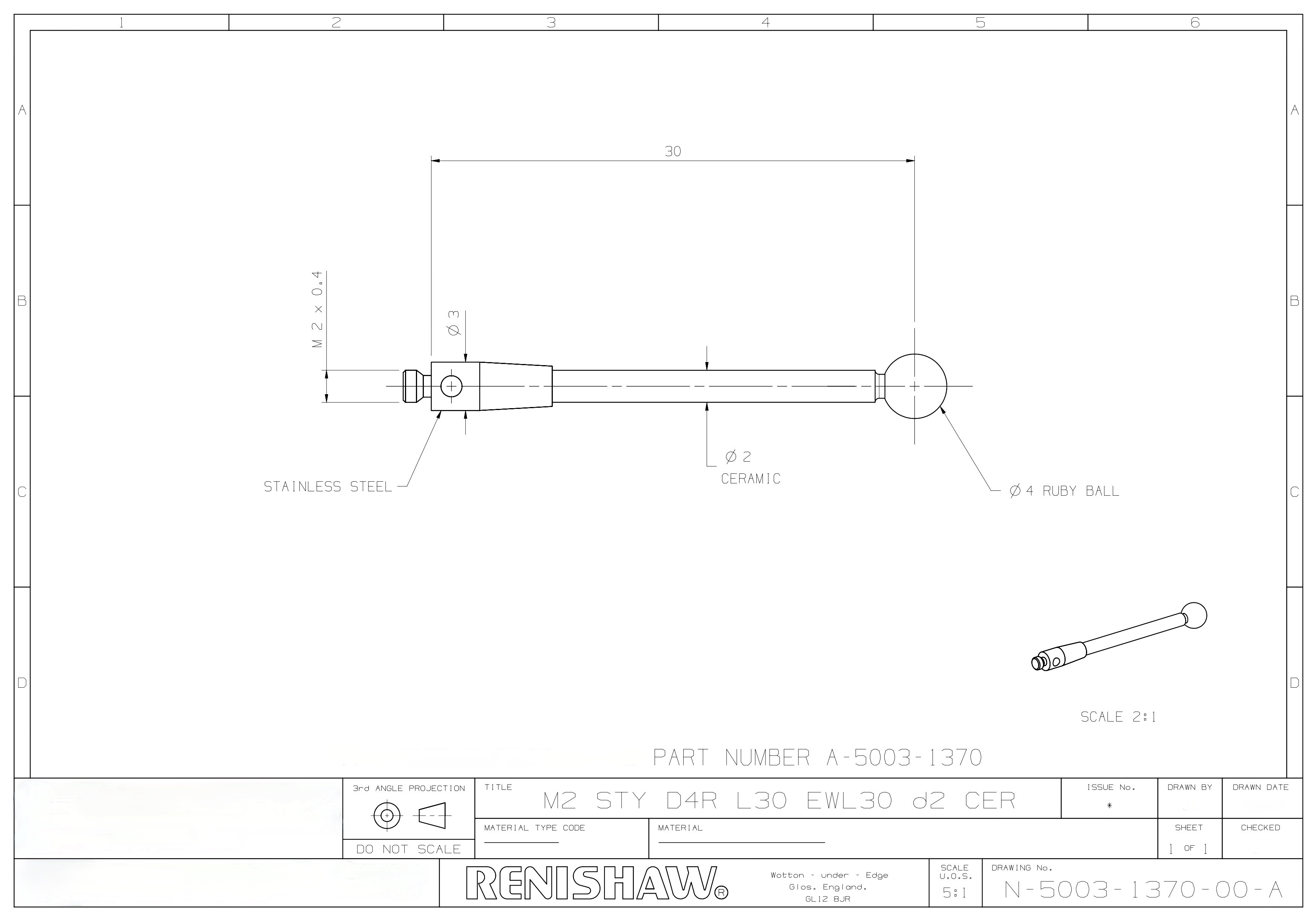

A-5003-1370 Technical Drawing
This is by far the best price you will find on 2 QTY: Renishaw M2 Ø4 mm Ruby Ball, Ceramic Stem, L 30
mm, EWL 30 mm Styli New with 1 Year Warranty. Purchase with confidence from a Paypal verified
retailer. If what you order is not what you receive you will be refunded the full purchase price of this
sale. Metrology Parts would like the opportunity to earn your business for this sale and all of your
future Renishaw needs. If you have any questions feel free to contact us. With 36 plus years of
experience with Renishaw products we can help with all of your application needs as well as your after
sales support.
