Renishaw TP200 Standard Force Stylus Module Fully Tested with 90 Day Warranty A-1207-0010

MSRP: $710.00
$275.00
(You save $435.00)
(No reviews yet) Write a Review
Condition:
Used
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

Product Description



Condition:

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.







Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   TP200 STANDARD FORCE STYLUS MODULE

MPN:   A-1207-0010







Item Description

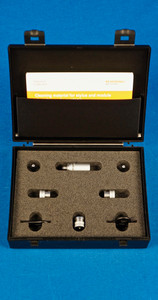

Fully Tested in Box Renishaw TP200 Standard Force Stylus Module with 90 Day Warranty.

The TP200 is a electronic probe using strain gauge technology which gives higher accuracy than

kinematic touch trigger probes.

Whats included in this sale is one used TP200 Standard Force Stylus Module in a

foam lined Renishaw box.

Renishaws current retail price for all that is included in this sale is $710.00

About TP200

TP200 system configuration

The TP200 system components are:

  • TP200 or TP200B probe body (the TP200B is a variant with increased vibration tolerance)
  • TP200 stylus module - choice of fixed overtravel forces: SF (standard force) or LF (low force)
  • PI 200 probe interface
  • SCR200 stylus changing rack

There is also an EO module (extended overtravel) which has the same overtravel force as the SF

but provides increased operating range and protection in the probe Z axis.














Features and benefits

  • Strain-gauge technology offers excellent repeatability and precision 3D form measurement.
  • Zero reseat errors.
  • No lobing effect.
  • 6-way measuring capability
  • Stylus reach of up to 100 mm (GF styli)
  • Rapid probe module changing without the need to re-qualify the stylus tips
  • Life of >10 million triggers


TP200 / TP200B probe body

TP200

The TP200 probe uses micro strain gauge transducers to deliver excellent repeatability and accurate

3D form measurement even with long styli. The sensor technology gives sub-micron repeatability and

eliminates the probing characteristics encountered with kinematic probes. The solid state ASIC electronics

within the probe ensure reliable operation over millions of trigger points.

The TP200B uses the same technology as TP200 but has been designed to have higher tolerance to

vibration. This helps to overcome the problem of 'air' trigger generation which can arise from

vibrations transmitted through the CMM or when using long styli with faster positioning speeds.

Please note that we do not recommend the use of TP200B with the LF module or cranked/star styli.




TP200 specification

SummaryTP200TP200B

Principal application

DCC CMM where high accuracy is required. As TP200 but where 'air' trigger events occur.

Sense directions

6-axis: ±X, ±Y, ±Z 6-axis: ±X, ±Y, ±Z

Unidirectional repeatability (2s µm)

Trigger level 1:  0.40 µm (0.000016 in)

Trigger level 2:  0.50 µm (0.00002 in)

Trigger level 1:  0.40 µm (0.000016 in)

Trigger level 2:  0.50 µm (0.00002 in)

XY (2D) form measurement deviation

Trigger level 1:  ±0.80 µm (0.000032 in)
Trigger level 2:  ±0.90 µm (0.000036 in)
Trigger level 1:  ±1 µm (0.00004 in)
Trigger level 2:  ±1.2 µm (0.000047 in)

XYZ (3D) form measurement deviation

Trigger level 1:  ±1 µm (0.00004 in)
Trigger level 2:  ±1.40 µm (0.000056 in)
Trigger level 1:  ±2.50 µm (0.0001 in)
Trigger level 2:  ±4 µm (0.00016 in)
Repeatability of stylus change With SCR200:  ±0.50 µm (0.00002 in) max.
Manual:  ±1 µm (0.00004 in) max.
With SCR200:  ±0.50 µm (0.00002 in) max.
Manual:  ±1 µm (0.00004 in) max.
Trigger force (at stylus tip) XY plane (all modules):  0.02 N
Z axis  (all modules):  0.07 N
XY plane (all modules):  0.02 N
Z axis  (all modules):  0.07 N
Overtravel force (@ 0.50 mm displacement)

XY plane (SF/EO module):  0.2 N to 0.4 N
XY plane (LF module):  0.1 N to 0.15 N
Z axis (SF/EO module):  4.90 N
Z axis (LF module):  1.60 N

XY plane (SF/EO module):  0.2 N to 0.4 N
XY plane (LF module):  0.1 N to 0.15 N
Z axis (SF/EO module):  4.90 N
Z axis (LF module):  1.60 N

Weight (probe sensor and module) 22 g (0.78 oz)  22 g (0.78 oz)
Maximum extension (if on a PH10 series head) 300 mm (11.81 in)  300 mm (11.81 in)
Maximum recommended stylus length (M2 styli range) SF/EO module:  50 mm (1.97 in) steel to 100 mm (3.94 in) GF

LF module:  20 mm (0.79 in) steel to 50 mm (1.97 in) GF

 SF/EO module:  50 mm (1.97 in) steel to 100 mm (3.94 in) GF

LF module:  20 mm (0.79 in) steel to 50 mm (1.97 in) GF

Mounting method M8 thread M8 thread
Suitable interface PI200UCC PI200, UCC

This is by the far the best price you will find on a Renishaw TP200 Standard Force Stylus Module With 90 Day Warranty.

Why pay retail prices when you can purchase with warranty from Metrology Parts.

Purchase with confidence from a Paypal verified retailer.

If what you order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw needs.

If you have any questions feel free to contact us. With 32 years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
