Renishaw TP20 EM1 CMM Probe Module Demonstration Model Kit With 6 Month Warranty A-1371-0430

MSRP: $1,173.00
$700.00
(You save $473.00)
(No reviews yet) Write a Review
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

Product Description

Condition:   New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects.





Country of Manufacture:   UNITED KINGDOM

Brand:   RENISHAW

Model:   EM1

MPN:   A-1371-0430

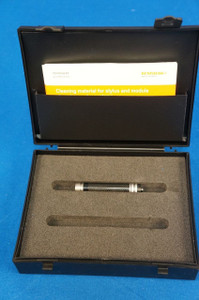

Showroom Demonstration Model Renishaw TP20 EM1 Standard Force Stylus Module Kit With 6 Month Warranty.

The Renishaw EM1 is a standard force module with integral 50 MM carbon fiber extension that connects to your TP20 touch probe body or MH20I probe head.

Current list price for the EM1 module is $1173.00

About TP20

TP20 system configurationThe TP20 is a compact 5-way, or 6-way, kinematic touch-trigger probe system. The two-piece design, comprising probe body and detachable stylus module(s), connected using a highly repeatable magnetic kinematic coupling. This provides the facility to change stylus configurations either manually or automatically without the need for requalification of the stylus tips, thereby giving significant time savings in inspection routines.

Modules offering a range of trigger forces allow the probe performance to be best matched to the measurement task. A set of probe extensions is also available, as is a 6-way module. The stylus mounting thread accepts styli from the Renishaw M2 range.

The TP20 system is easily retrofitted and is compatible with existing touch trigger probe interfaces, extensions and adaptors.



System components

The system components are:

  • TP20 probe body
  • TP20 probe module - seven variants allow optimisation to suit application
  • MCR20 module changing rack - automatic operation
  • MSR1 module storage rack - manual operation
  • Suitable for interfacing with Renishaw's PI4-2, PI7-2 or PI200

TP20 specification

Sense directions

All modules except 6W

6W

±X, ±Y, +Z

±X, ±Y, ±Z

Suitable interface   PI4-2, PI7-2, PI200, UCC
Pre-travel variation

LF

SF / EM1 / EM2

MF

EF

6W

±0.60 µm (± 0.000023 in)

±0.80 µm (± 0.000032 in)

±1.00 µm (± 0.000039 in)

±2.00 µm (± 0.000079 in)

±1.50 µm (±0.000058 in)

Unidirectional repeatability

 LF / SF / EM1 / EM2

MF

EF

6W

±0.35 µm (± 0.000014 in)

±0.50 µm (± 0.000020 in)

±0.65 µm (± 0.000026 in)

±0.80 µm (± 0.000032 in)

Repeatability of stylus changing

MCR20

Manual

±0.50 µm (± 0.000020 in)

±1.00µm (± 0.000040 in)

Stylus range   M2
Mounting method   M8 thread

Probe modules

A range of seven, application specific, probe modules is available and are identified by coloured caps.

Module ApplicationTrigger forcesStylus lengths
SF - Standard force TP20 SF module  Suited to the majority of applications

XY: 0.08 N

Z: 0.75 N

Stylus: 10 mm

10 - 50 mm GF
LF - Low force  TP20 LF module Low trigger forces applications - e.g. rubber seals

XY: 0.055 N

Z: 0.65 N

Stylus: 10 mm

10 - 30 mm
MF - Medium force TP20 MF module Where a higher trigger force than standard is required

XY: 0.1 N

Z: 1.9 N

Stylus: 25 mm

10 - 60 mm
EF - Extended force TP20 EF module Large stylus assemblies or where vibration causes spurious 'air' triggers

XY: 0.1 N

Z: 3.2N

Stylus: 10 mm

10 - 60 mm
6W - 6-way TP20 6W module Measurement in the –Z direction - e.g. undercuts

XY: 0.14 N

Z: 1.6N

Stylus:  10 mm

10 - 50 mm
EM1 STD - 50 mm extension TP20 EM1 Majority of applications requiring a 50 mm extension

XY: 0.08 N

Z: 0.75 N

Stylus:  10 mm

10 - 50 mm
EM2 STD - 75 mm extension TP20 EM2 module Majority of applications requiring a 75 mm extension

XY: 0.08 N

Z: 0.75 N

Stylus:  10 mm

10 - 50 mm

This sale is for the touch probe module only and does not include the touch probe body.

This is by far the best price you will find for a Renishaw TP20 EM1 stylus module with 6 month warranty.

Why pay retail when you can purchase with warranty from Metrology Parts.

Purchase with confidence from a Paypal verified retailer.

If what you order is not what you receive you will be refunded the full purchase price for this sale.

Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs.

If you have any questions feel free to contact us. With 28 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
